3. Paste the drill template (supplied) to the place
where you want to install the camera.
4. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.

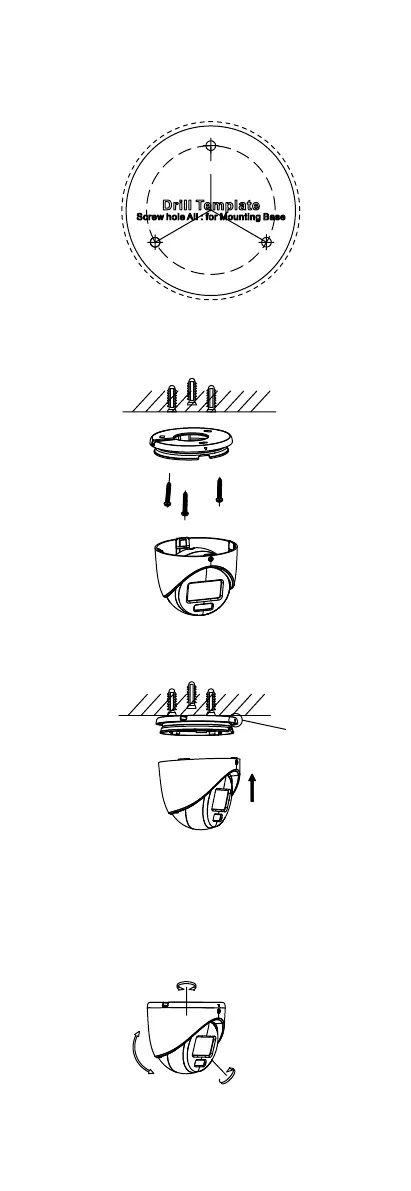

Figure 2-24 Drill Template
5. Use three PA4 × 25 screws (supplied) to secure the
base to the ceiling.
Figure 2-25 Secure the Base to the Ceiling
6. Align the screw hole with the triangle mark to install
the camera back to the base and secure it.
Figure 2-26 Install the Camera Back
7. Connect the power cord and video cable.
8. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
