HIKVISION DS-2CE10DF8T-F User Manual

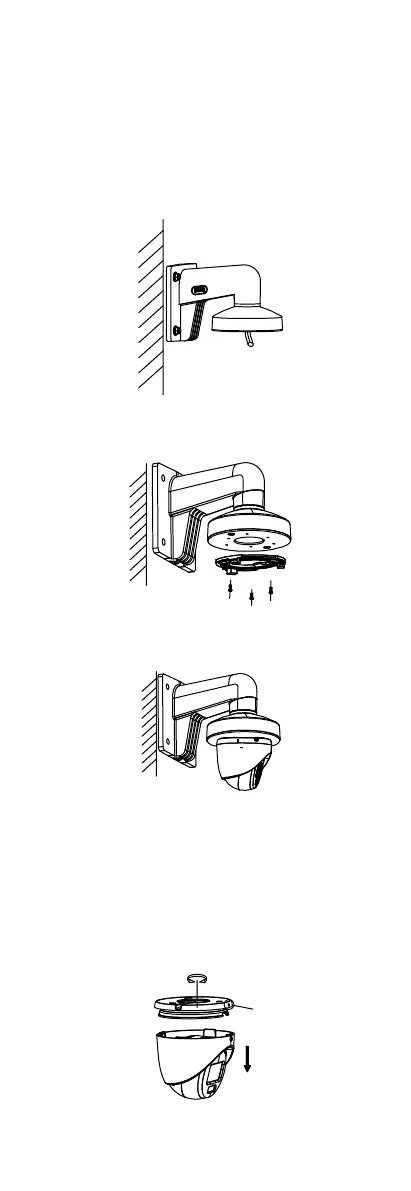

Figure 2-19 Finish the Installation
2.3.3 Wall Mounting
Before you start:
You need to purchase a wall mount in advance.
Steps:
1. Drill Φ 10 mm screw holes in the wall where you
want to install the wall mount.
2. Use M6 × 75 metal expansion bolts to fix the wall
mount onto the wall.
Figure 2-20 Fix the Wall Mount
3. Use PM4 × 10 screws to fix the gang box onto the
wall mount.
Figure 2-21 Fix the Gang Box
4. Repeat the step 4 to 6 of 2.4.1 Ceiling Mounting
Without Junction Box to finish the installation.
Figure 2-22 Finish the Installation
2.4 Installation of Type IV Camera
2.4.1 Ceiling Mounting Without Junction Box
Steps:
1. Loosen the set screw.
2. Rotate the camera to align the triangle mark with
the screw hole, and dissemble the camera.
Triangle
Mark
Figure 2-23 Dissemble the Camera
