HIKVISION DS-2CE12D0T-PIRXF User Manual

1. Drill screw holes and the cable hole (optional) on
the wall.
2. Take apart the junction box, and align the screw
holes of the mounting base with those on the
junction box’s cover.
3. Install the mounting base to the junction box’s cover
with three PM4 screws.

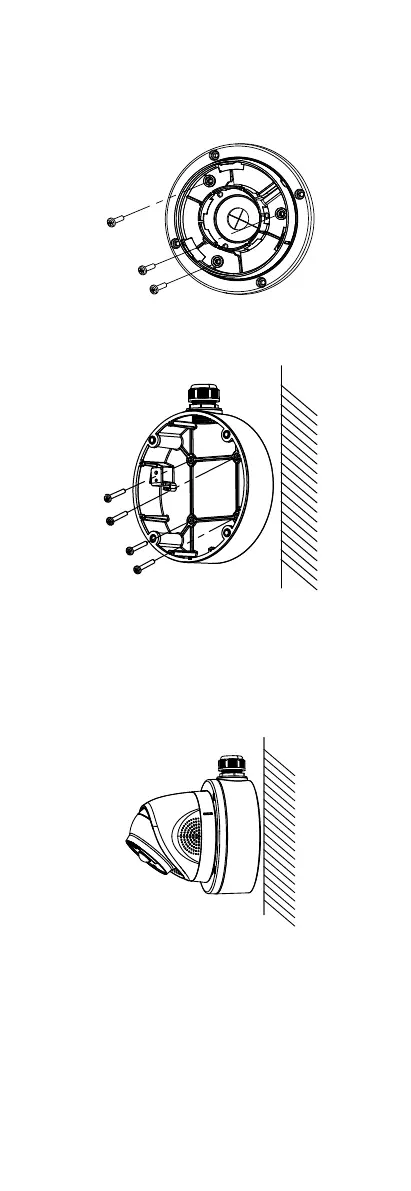

Figure 2-13 Secure screws on the Junction Box’s Cover
4. Secure the junction box’s body on the wall with four
PA4 × 25 screws.
Figure 2-14 Secure the Junction Box’s Body
5. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
6. Combine the junction box’s cover with its body.
7. Repeat the step 6 to 8 of 2.2.1 Ceiling/Wall
Mounting without Junction Box to finish the
installation.
Figure 2-15 Finish the Installation
