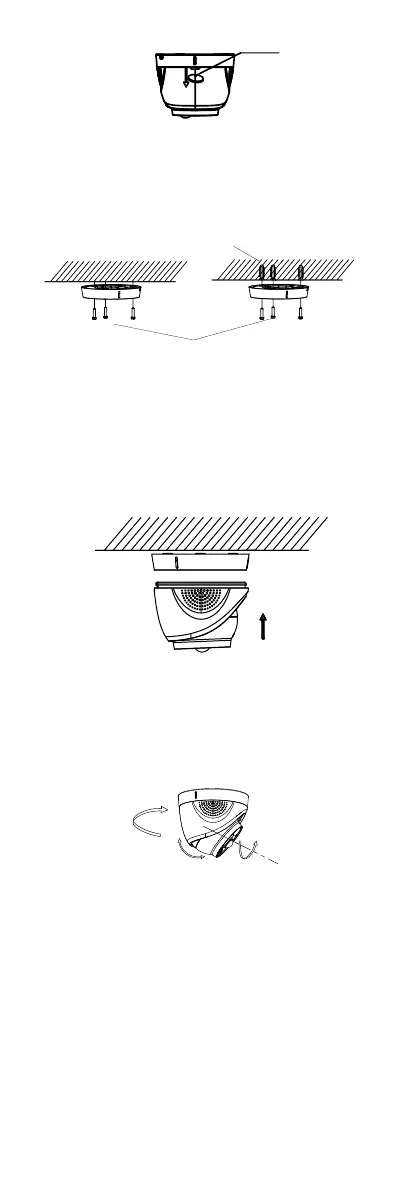

Figure 2-9 Pry the Mounting Base
3. Drill screw holes and the cable hole on the ceiling.
4. Attach the mounting base to the ceiling and secure
it with supplied screws. For cement ceiling, you
need to install the expansion bolts at first.
Self-tapping Screws
Expansion Bolts
Figure 2-10 Attach the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
5. Route the cables through the cable hole, or the side
opening.
6. Install the camera back to the mounting base and
secure it.
Figure 2-11 Install the Camera Back
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Rotation Position
[0° to 360°]
Pan Position
[0° to 360°]
Tilt Position
[0° to 75°]
Figure 2-12 3-Axis Adjustment
1). Rotate the enclosure to adjust the pan position
[0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the main body to adjust the rotation
position [0° to 360°].
2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance. The
installation of ceiling mounting and wall mounting are
similar. Following takes wall mounting as an example.
Steps:
To Next Page
