Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Attach the bracket to the ceiling/wall and secure the
camera with supplied screws.
Fixing Screw
Adjusting Screws

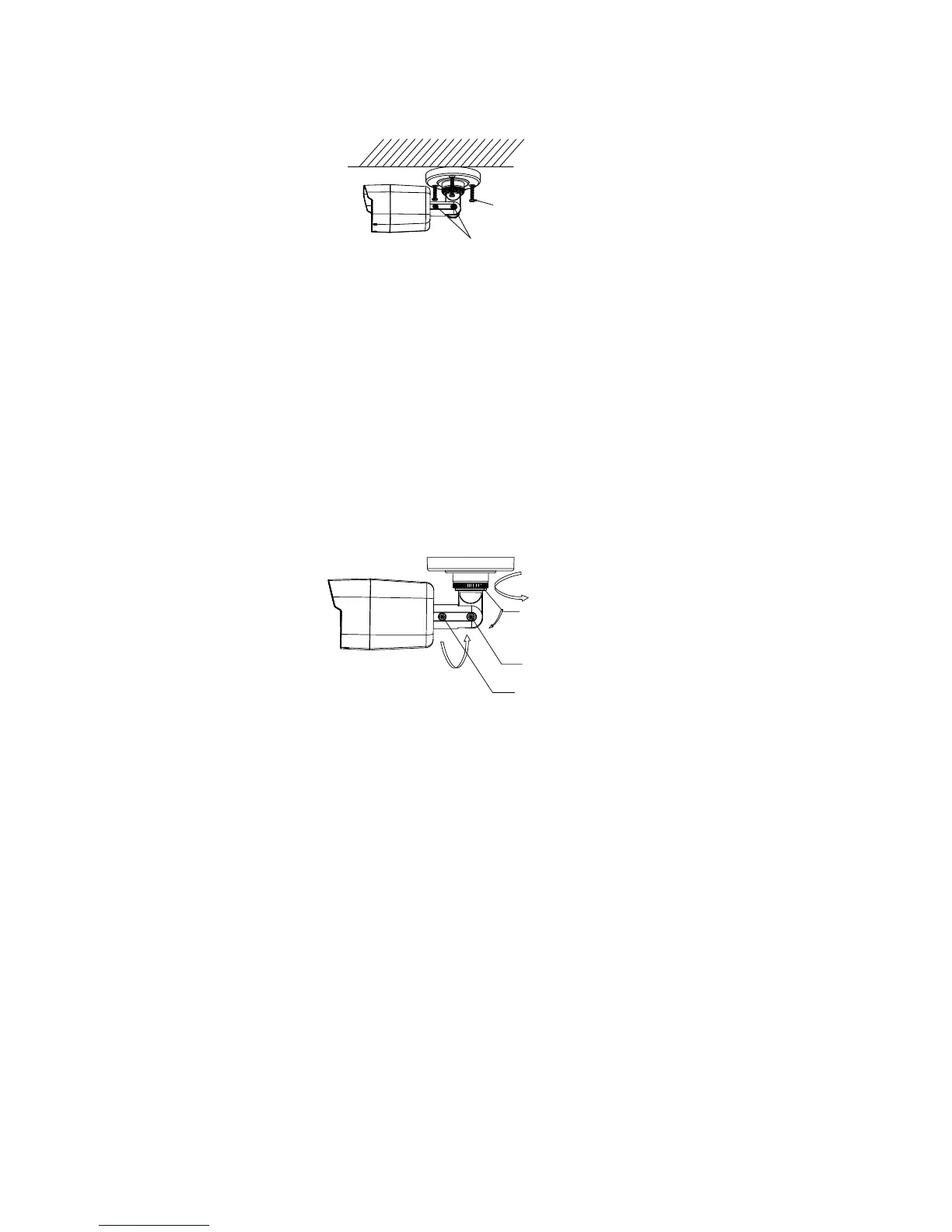

Figure 2-2 Fix the Camera to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
4. Route the cables through the cable hole, or the side
opening.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
P Screw
T Screw
R Screw
Tilt Position
[0° to 180°]
Pan Position
[0° to 360°]
Rotation Position
[0° to 360°]
Figure 2-3 3-axis Adjustment
1). Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2). Loosen the T screw to adjust the tilt position [0°
to 180°]. Tighten the screw after completing the
adjustment.
3). Loosen the R screw to rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes, and the cable hole in the
ceiling/wall according to the holes of the drill
template.
To Next Page
