HIKVISION DS-2CE19H8T-IT3ZF - Page 4

 To avoid heat accumulation, good ventilation is
required for the operating environment.
 Keep the camera away from liquid while in use for non-
water-proof device.
 While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.

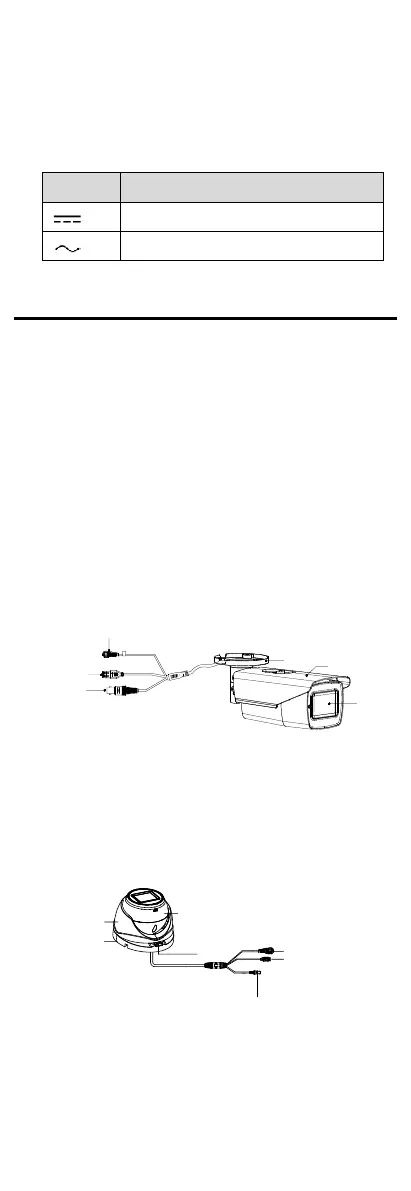

Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
AC Voltage
1 Introduction
1.1 Product Features
The main features are as follows:
 High performance CMOS sensor
 IR cut filter with auto switch
 OSD menu with configurable parameters
 Auto white balance
 Internal synchronization
 SMART IR mode
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 3-axis adjustment
1.2 Overview
1.2.1 Overview of Type I Camera
Bracket
Sun Shield
Lens
Video Cable
Power Cord
DC12
V
IN
Switch Button
Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to switch
the video output. Four kinds of video outputs are
available: TVI, AHD, CVI, and CVBS.
1.2.2 Overview of Type II Camera
Camera
Enclosure
Mounting
Base
Clip Plate
Power Cord
DC12VIN
Switch Button
Video Cable
Figure 1-2 Overview of Type II Camera
Note:
Press and hold the switch button for 5 seconds to switch
the video output. Four kinds of video outputs are
available: TVI, AHD, CVI, and CVBS.
