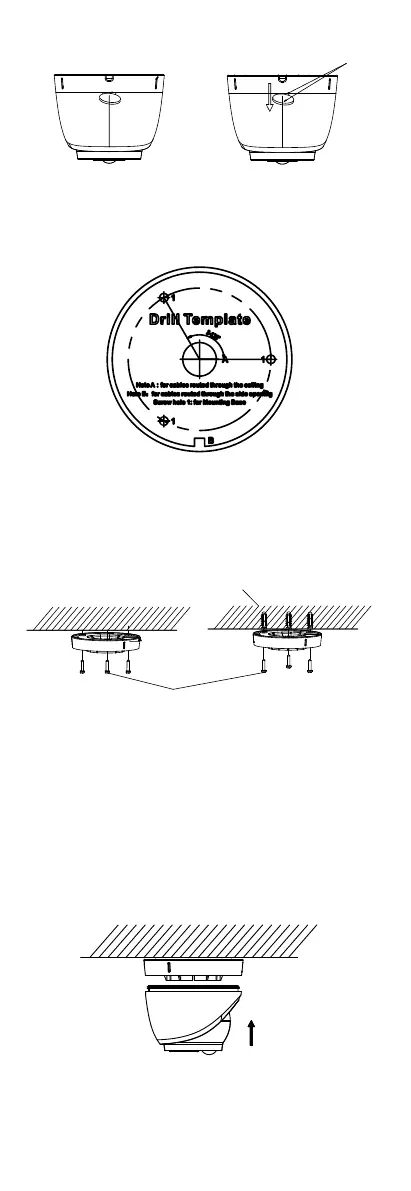

Figure 2-1 Dissemble the Camera
2. Paste the drill template (supplied) to the place
where you want to install the camera.
3. Drill the screw holes, and the cable hole (optional)
in the ceiling/wall according to the drill template.
Figure 2-2 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
4. Attach the mounting base to the ceiling/wall, and
secure them with supplied screws.
Figure 2-3 Attach the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden wall/ceiling,
self-tapping screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Install the camera back to the mounting base, and
tighten the screws to secure it on the mounting
base.
Figure 2-4 Install the Camera back to the Mounting
Base
7. Connect the corresponding cables, such as power
cord, and video cable.
