HIKVISION DS-2DE3204W-DE User Manual

User Manual of Network Mini PTZ Camera
© Hikvision
99

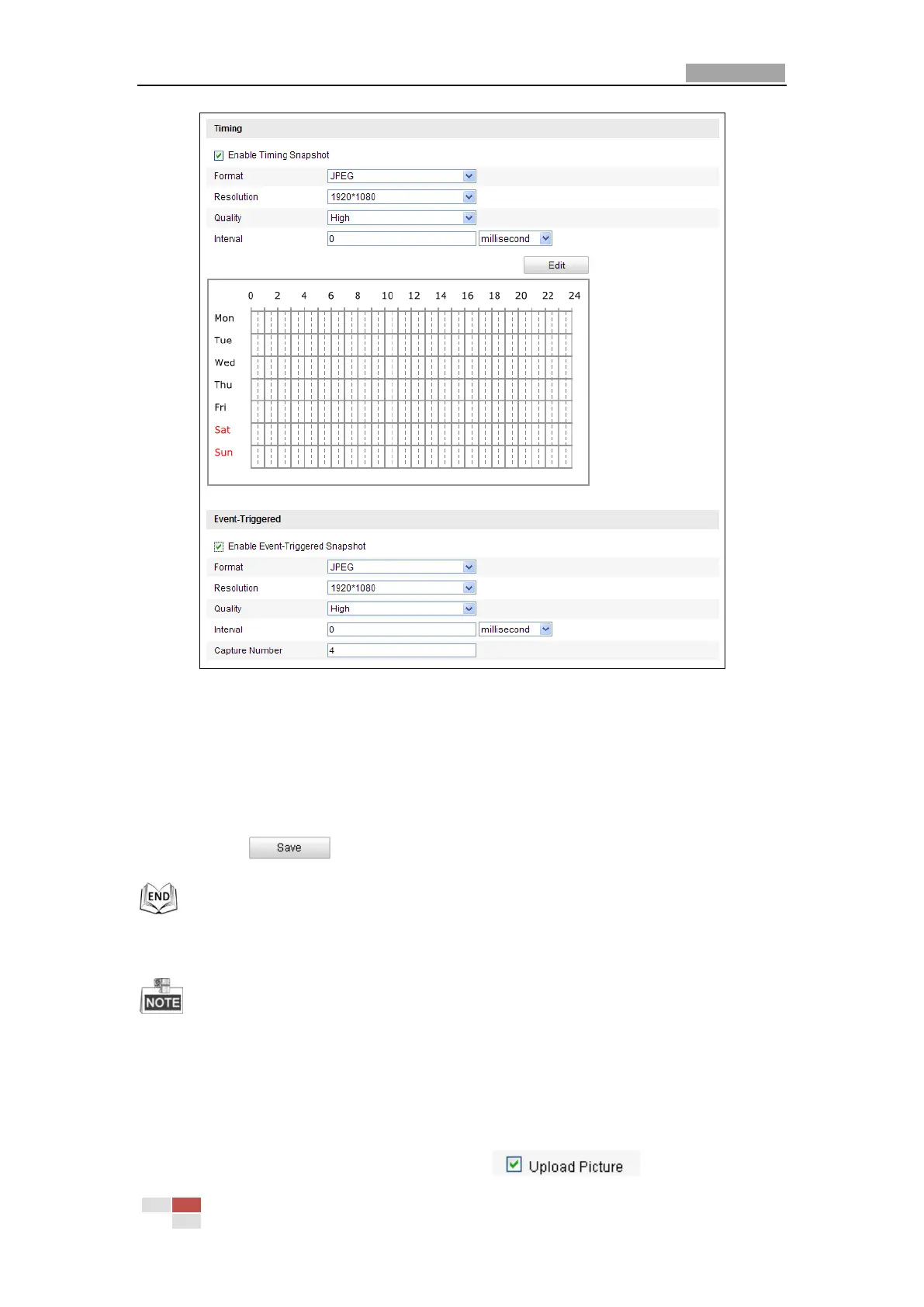

Figure 8-10 Snapshot Settings
2. Check the Enable Timing Snapshot checkbox to enable continuous snapshot,
and configure the schedule of timing snapshot. Check the Enable
Event-triggered Snapshot checkbox to enable event-triggered snapshot.
3. Select the quality of the snapshot.
4. Set the time interval between two snapshots.
5. Click to save the settings.
 Uploading to FTP
Please make sure that the FTP server is online.
You can follow below configuration instructions to upload the snapshots to FTP.
 Upload continuous snapshots to FTP
Steps:
1) Check the Enable Timing Snapshot checkbox.
2) Configure the FTP settings and check checkbox in FTP
