HIKVISION DS-2DE5425IW-AE User Manual

© Hikvision
You can enable the Hik-Connect service for the device during activation. Hik-Connect function
varies depending on different speed dome models.
4. Click Activate to start activation. You can check whether the activation is completed on the
popup window. If activation failed, make sure that the password meets the requirement and
then try again.
5. Change the device IP address to the same subnet with your computer by either modifying
the IP address manually or checking the Enable DHCP checkbox.

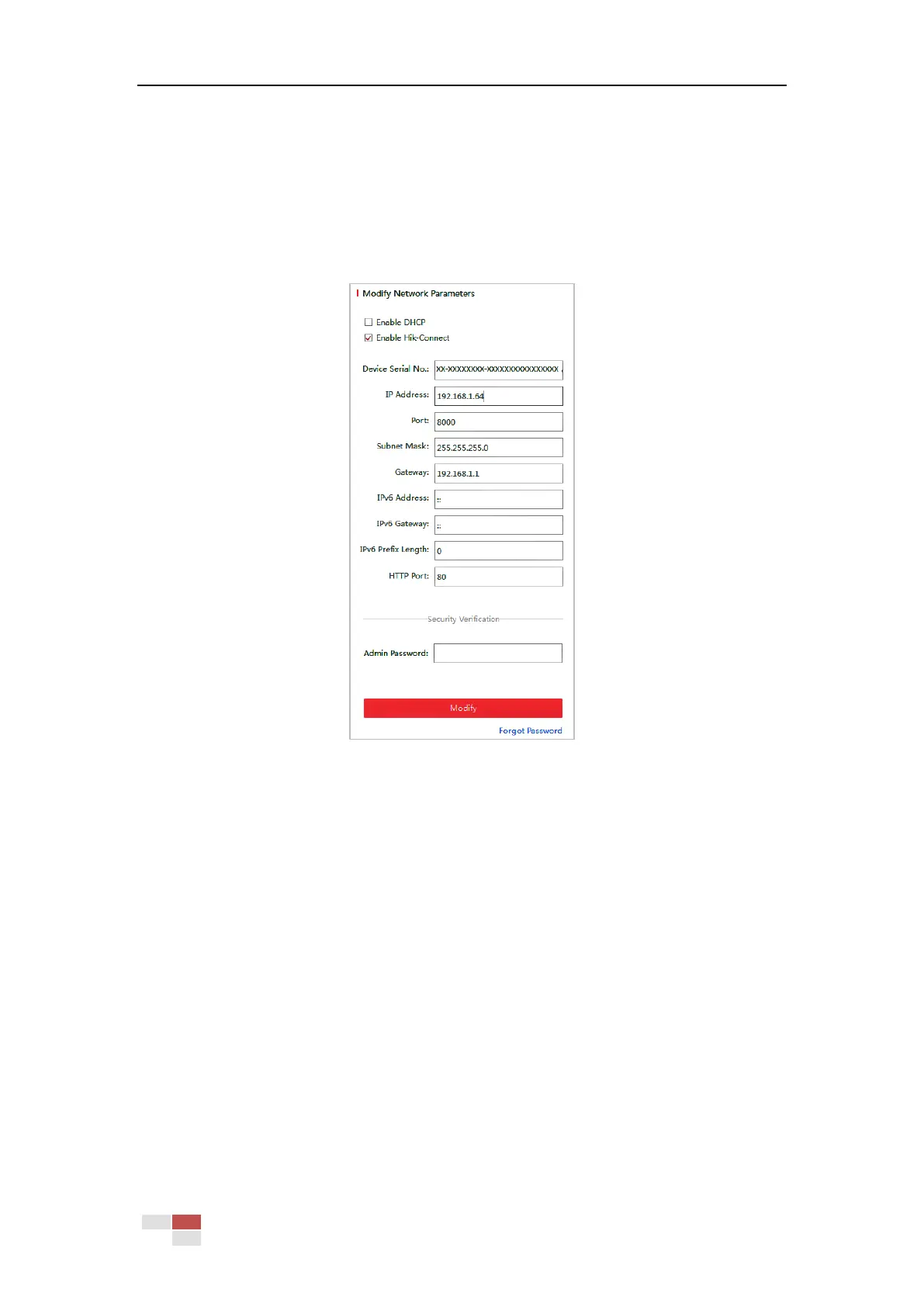

Figure 2-5 Modify the IP Address
6. Input the password and click Modify to activate your IP address modification.
The batch IP address modification is supported by the SADP. Refer to the user manual of
SADP for details.
 Activation via Client Software
The client software is versatile video management software for multiple kinds of devices.
Get the client software from the supplied disk or the official website, and install the software
according to the prompts. Follow the steps to activate the camera.
Steps:
1. Run the client software and the control panel of the software pops up, as shown in Figure
2-6.

HIKVISION DS-2DE5425IW-AE Specifications

General

Type	IP security camera
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Number of languages	32
Placement supported	Outdoor
Connectivity technology	Wired
Infrared (IR) cut-off filter	Yes
Total megapixels	4 MP
Gain control type	Auto/Manual
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Number of cameras	1
Sensor type	CMOS
Optical sensor size	1/2.8 \
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	25 x
Focal length range	- mm
Maximum aperture number	3.5
Minimum aperture number	1.6
Closest focusing distance	0.01 m
Pan range	0 - 360 °
White balance	ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Pan preset speed	120 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0 lx
LED type	IR
Night vision distance	150 m
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio input channels	1 channels
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Number of users	32 user(s)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Power source type	DC
Power consumption (max)	30 W
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66

Weight and Dimensions

Height	345 mm
Weight	3300 g
Diameter	208 mm
