HIKVISION DS-2DE5425IW-AE User Manual

User Manual of Network Speed Dome
© Hikvision
16
Chapter 4 Basic Operations
In this and the following chapters, operation of the speed dome by the web browser will be taken
as an example.
4.1 Power-up Action
After the power is applied, the speed dome will perform self-test action. It begins with lens action
and then pan/tilt movement.
After the self-test action, the system information of the speed dome including the model, address,
communication, version, and other will be displayed on screen for 40 seconds.
4.2 Configuring Local Parameters
The local configuration refers to the parameters of the live view and other operations using the
web browser.
Steps:
1. Enter the Local Configuration interface:
Configuration > Local

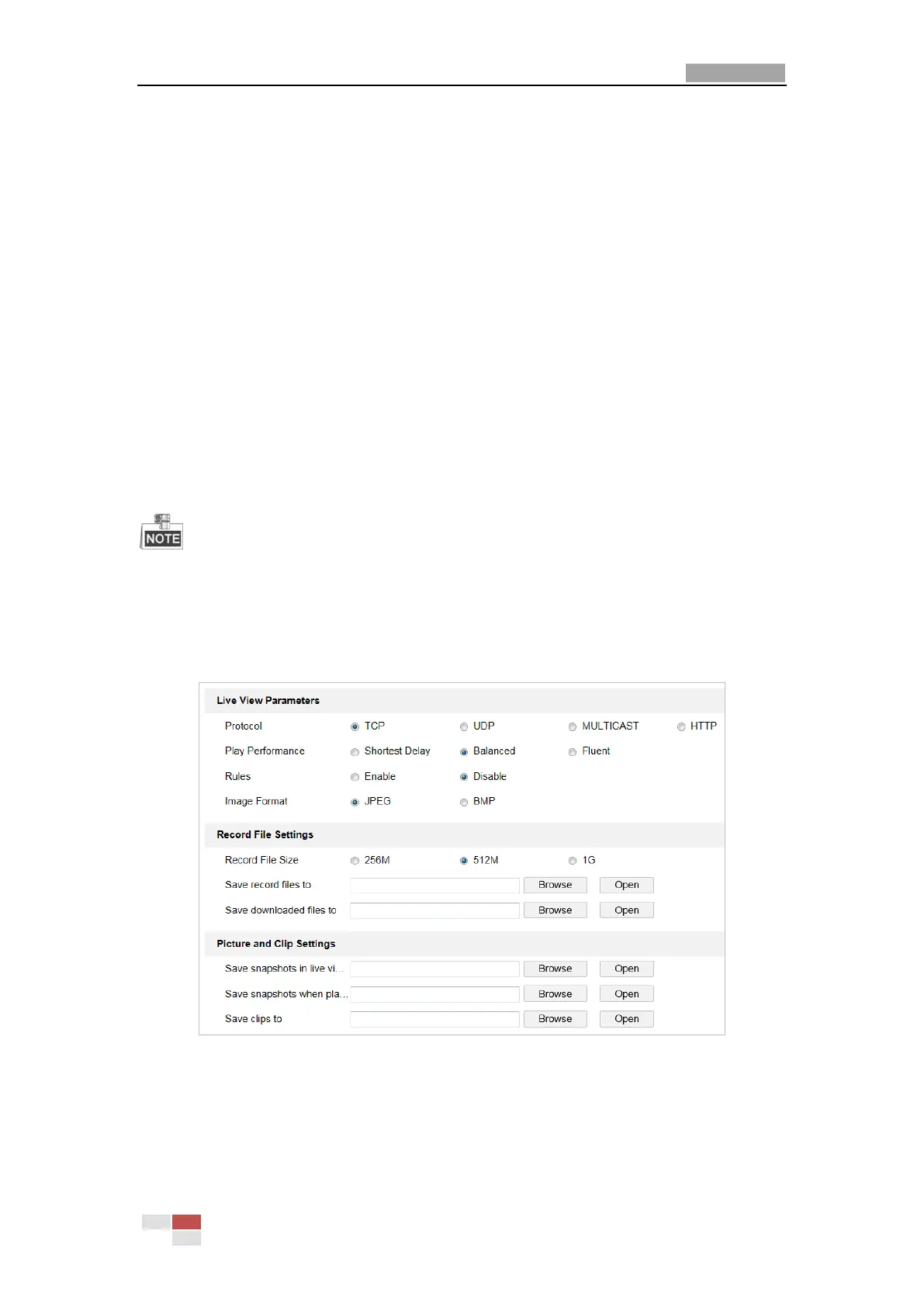

Figure 4-1 Local Configuration Interface
2. Configure the following settings:
 Live View Parameters: Set the protocol type, play performance, rules and image format.
 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.
TCP: Ensures complete delivery of streaming data and better video quality, yet the

HIKVISION DS-2DE5425IW-AE Specifications

General

Type	IP security camera
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Number of languages	32
Placement supported	Outdoor
Connectivity technology	Wired
Infrared (IR) cut-off filter	Yes
Total megapixels	4 MP
Gain control type	Auto/Manual
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Number of cameras	1
Sensor type	CMOS
Optical sensor size	1/2.8 \
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	25 x
Focal length range	- mm
Maximum aperture number	3.5
Minimum aperture number	1.6
Closest focusing distance	0.01 m
Pan range	0 - 360 °
White balance	ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Pan preset speed	120 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0 lx
LED type	IR
Night vision distance	150 m
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio input channels	1 channels
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Number of users	32 user(s)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Power source type	DC
Power consumption (max)	30 W
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66

Weight and Dimensions

Height	345 mm
Weight	3300 g
Diameter	208 mm
