HIKVISION DS-2DE5425IW-AE User Manual

© Hikvision
2. Check the Enable Scheduled Task checkbox.
3. Set the Park Time. You can set the park time (a period of inactivity) before the speed dome
starts the scheduled tasks.
4. Select the task type from the dropdown list.
5. Select the timeline of a certain day, and drag the mouse to set the recording schedule (the
start time and end time of the recording task).
6. After you set the scheduled task, you can click and copy the task to other days
(optional).

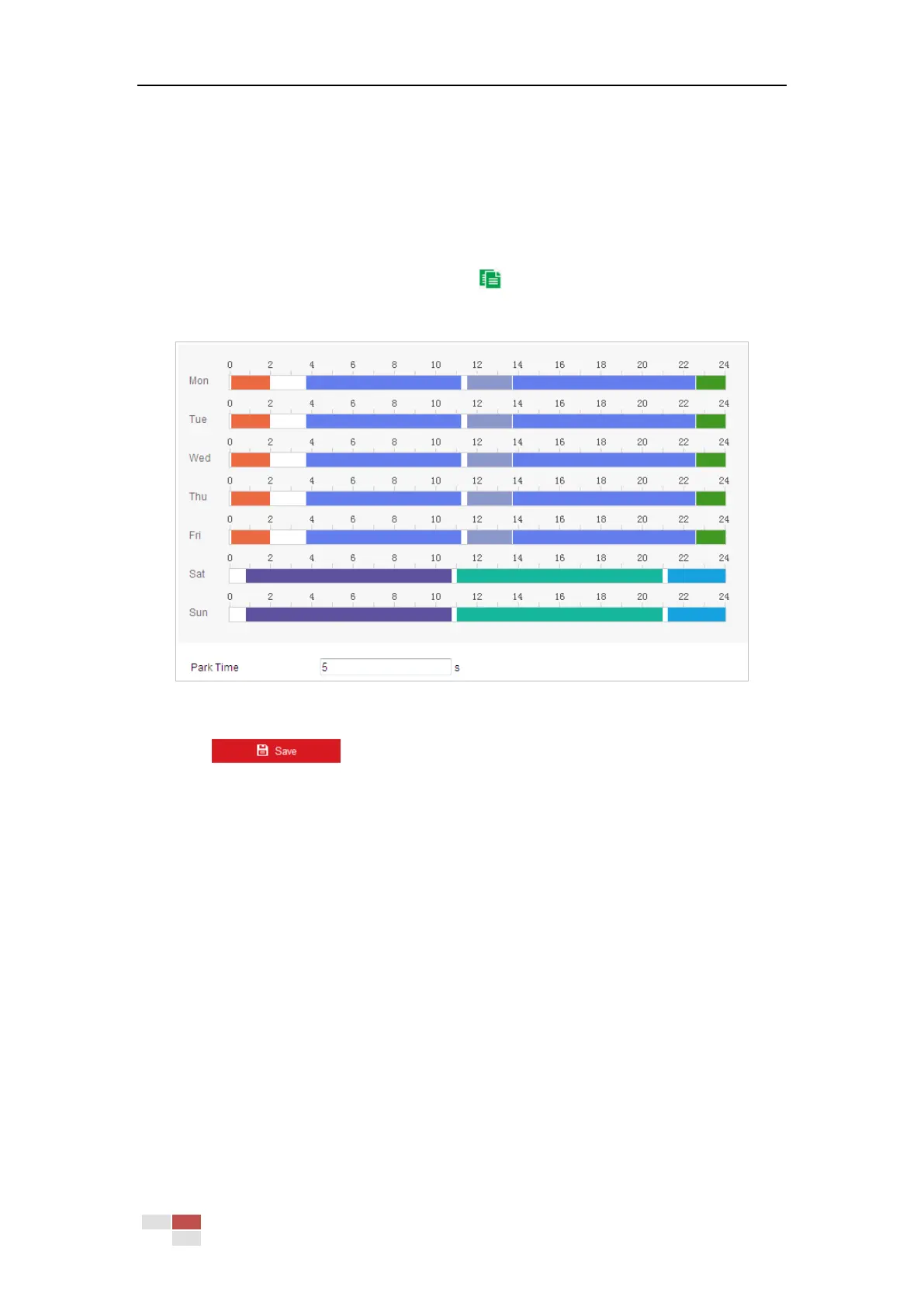

Figure 5-34 Edit the Schedule and Task Type
7. Click to save the settings.
5.4.7 Clearing PTZ Configurations
Purpose:
You can clear PTZ configurations in this interface, including all presets, patrols, privacy masks, PTZ
limits, scheduled tasks and park actions.
Steps:
1. Enter the Clearing Configuration interface:
Configuration > PTZ > Clear Config
2. Check the checkbox of the items you want to clear.

HIKVISION DS-2DE5425IW-AE Specifications

General

Type	IP security camera
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Number of languages	32
Placement supported	Outdoor
Connectivity technology	Wired
Infrared (IR) cut-off filter	Yes
Total megapixels	4 MP
Gain control type	Auto/Manual
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Number of cameras	1
Sensor type	CMOS
Optical sensor size	1/2.8 \
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	25 x
Focal length range	- mm
Maximum aperture number	3.5
Minimum aperture number	1.6
Closest focusing distance	0.01 m
Pan range	0 - 360 °
White balance	ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Pan preset speed	120 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0 lx
LED type	IR
Night vision distance	150 m
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio input channels	1 channels
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Number of users	32 user(s)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Power source type	DC
Power consumption (max)	30 W
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66

Weight and Dimensions

Height	345 mm
Weight	3300 g
Diameter	208 mm
