User Manual of Network Speed Dome
© Hikvision

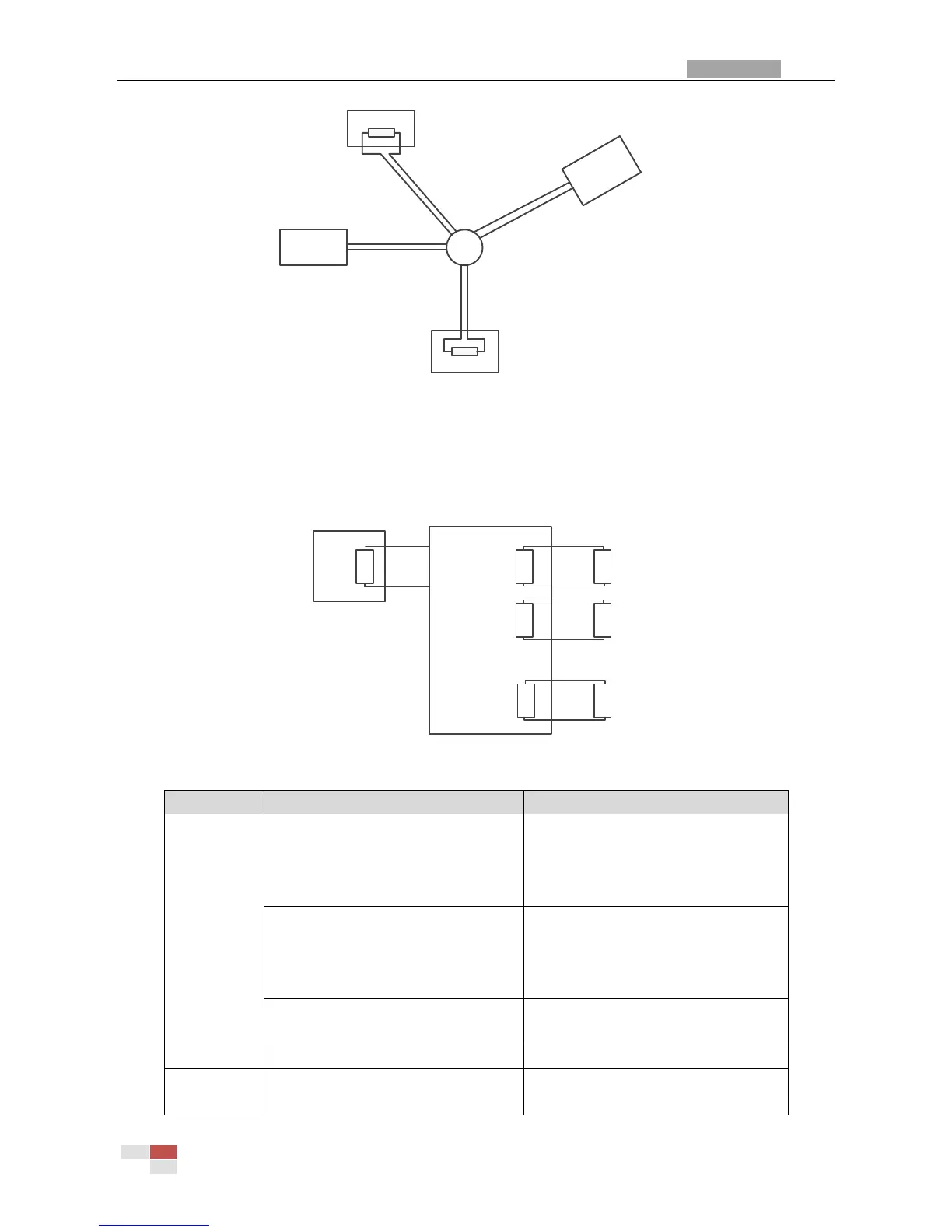

Figure A-9 Star Shape Connection
For such case, the best way is adding a RS485 distributor. This product can effectively change the
star-shape connection to which satisfies the requirement of RS485 industry standard, in order to
avoid those problems and improve the communication reliability. Refer to the following figure.
A+
B-
RS485 Distributor
120Ω
1#
2#
16#
120Ω
120Ω
Figure A-10 RS485 Distributor
Troubleshooting of RS485 communication
The speed
dome does
the
self-test
action but
cannot be
controlled
remotely.
1. The address or baudrate of the
speed dome does not match with
those of remote control device.
1. Adjust the address and
baudrate of the remote control
device to match with those of the
speed dome.
2. The wire RS485+ connects to
the interface RS485- and wire
RS485- connects to the interface
RS485+.
2. Connect the wire RS485+ to the
interface RS485+ and wire RS485-
to the interface RS485-.
3. The RS485 wire is
disconnected.
3. Reconnect the RS485 wire
tightly.
1. The connection is loose.
1. Reconnect the RS485 wire
tightly.
