HIKVISION DS-2DF5286-AEL User Manual

User Manual of Network Speed Dome
© Hikvision
27
 Calling a Preset:
In the PTZ control panel, select a defined preset from the list and click to call the
preset.

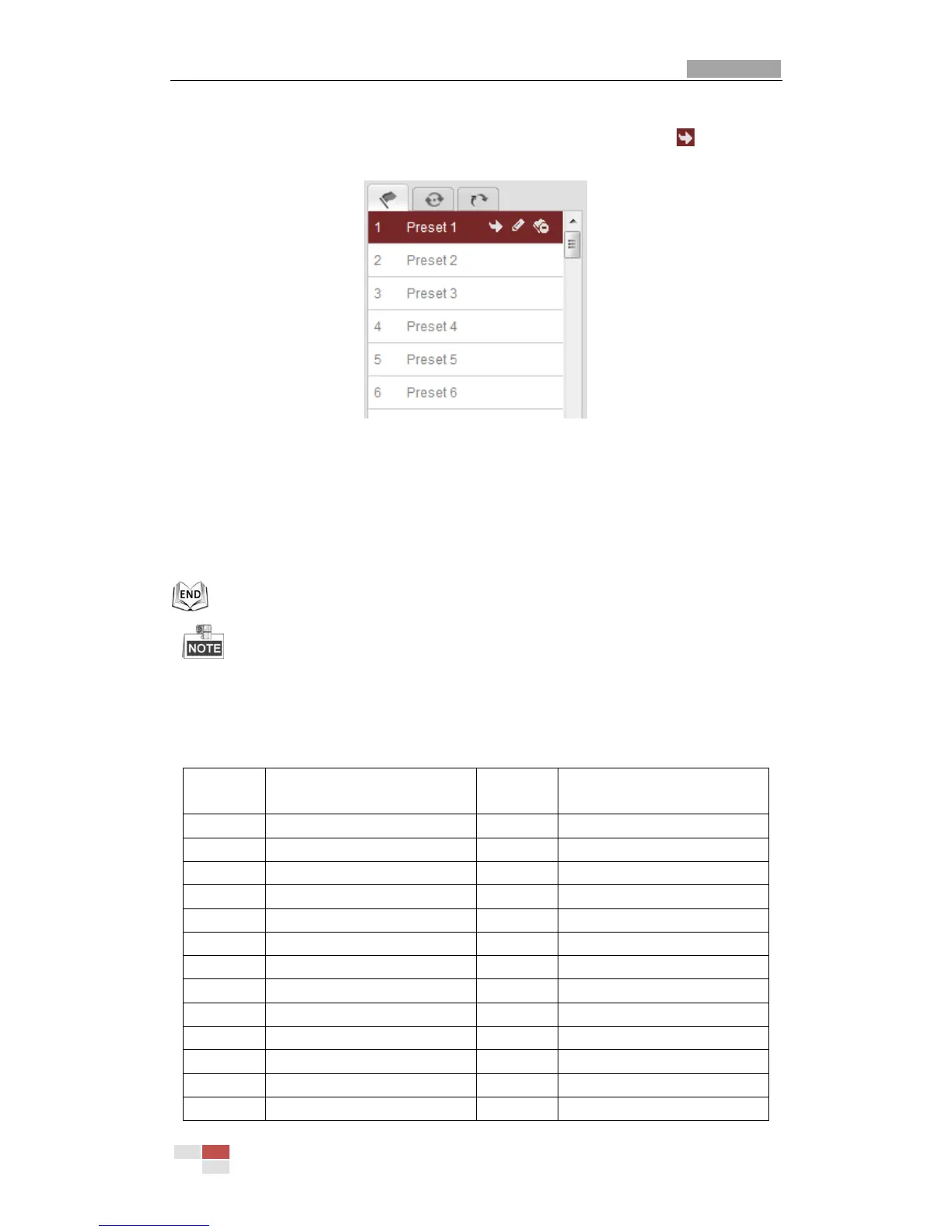

Figure 4-6 Calling a Preset
For convenient preset selection, refer to the following steps to navigate to the preset
you want.
Steps:
1. Select any preset from the list.
2. Click the preset number you need on the keyboard.
The following presets are predefined with special commands. You can only call
them but not configure them. For instance, preset 99 is the “Start auto scan”. If
you call the preset 99, the speed dome starts auto scan function.
Table 4-3 Special Presets
Special
Preset
Function
Special
Preset
Function
33
Auto flip
93
Set limit stops manually
34
Back to initial position
94
Remote reboot
35
Call patrol 1
95
Call OSD menu
36
Call patrol 2
96
Stop a scan
37
Call patrol 3
97
Start random scan
38
Call patrol 4
98
Start frame scan
39
IR cut filter in
99
Start auto scan
40
IR cut filter out
100
Start tilt scan
41
Call pattern 1
101
Start panorama scan
42
Call pattern 2
102
Call patrol 5
43
Call pattern 3
103
Call patrol 6
44
Call pattern 4
104
Call patrol 7
45
Automatically Create Patrol
105
Call patrol 8

HIKVISION DS-2DF5286-AEL Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	0 - 360 °
Pan speed	300 °/sec
White balance	ATW, Auto, Indoor, Lamp, Manual, Outdoor
Tilt angle range	-5 - 90 °
Camera shutter speed	1 - 1/10000 s
Minimum illumination	0.03 lx
Field of view (FOV) angle	58.9 °
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	16 x
Optical zoom	30 x
Focal length range	- mm
Password protection type	User
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
LED type	IR
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	52 dB
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	65 W
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	305 mm
Weight	5000 g
Diameter	220 mm
