4. Configure the preset number, patrol time and patrol speed.
Name
Description
Patrol Time
It is the duration staying on one patrol point. The speed
dome moves to another patrol point after the patrol time.
Patrol Speed
It is the speed of moving from one preset to another.
5. Click to save a preset into the patrol.
6. Repeat the steps from 3 to 5 to add more presets.
7. Click to save all the patrol settings.
 Calling a Patrol:
In the PTZ control panel, select a defined patrol from and click to
call the patrol, as shown in Figure 4-9.

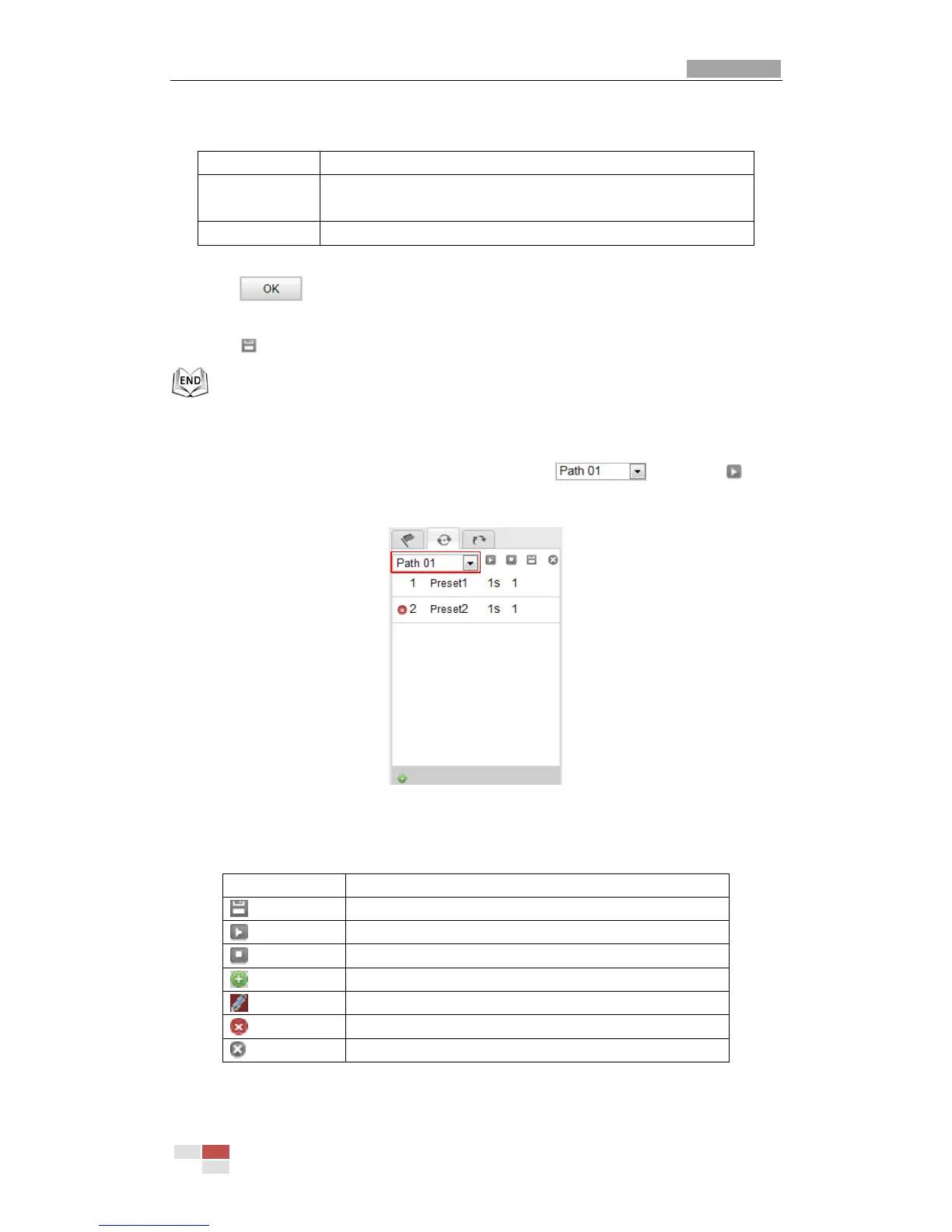

Figure 4-9 Calling a Patrol
 Buttons on the Patrols interface:
Buttons
Description
Save a patrol
Call a patrol
Stop a patrol
Enter the adding interface of preset
Modify a preset
Delete a preset
Delete all the presets in the selected patrol

HIKVISION DS-2DF5286-AEL Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	0 - 360 °
Pan speed	300 °/sec
White balance	ATW, Auto, Indoor, Lamp, Manual, Outdoor
Tilt angle range	-5 - 90 °
Camera shutter speed	1 - 1/10000 s
Minimum illumination	0.03 lx
Field of view (FOV) angle	58.9 °
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	16 x
Optical zoom	30 x
Focal length range	- mm
Password protection type	User
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
LED type	IR
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	52 dB
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	65 W
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	305 mm
Weight	5000 g
Diameter	220 mm
