HIKVISION DS-2TD1217-6/PA

Thermal & Optical Network Turret Camera Quick Start Guide
6

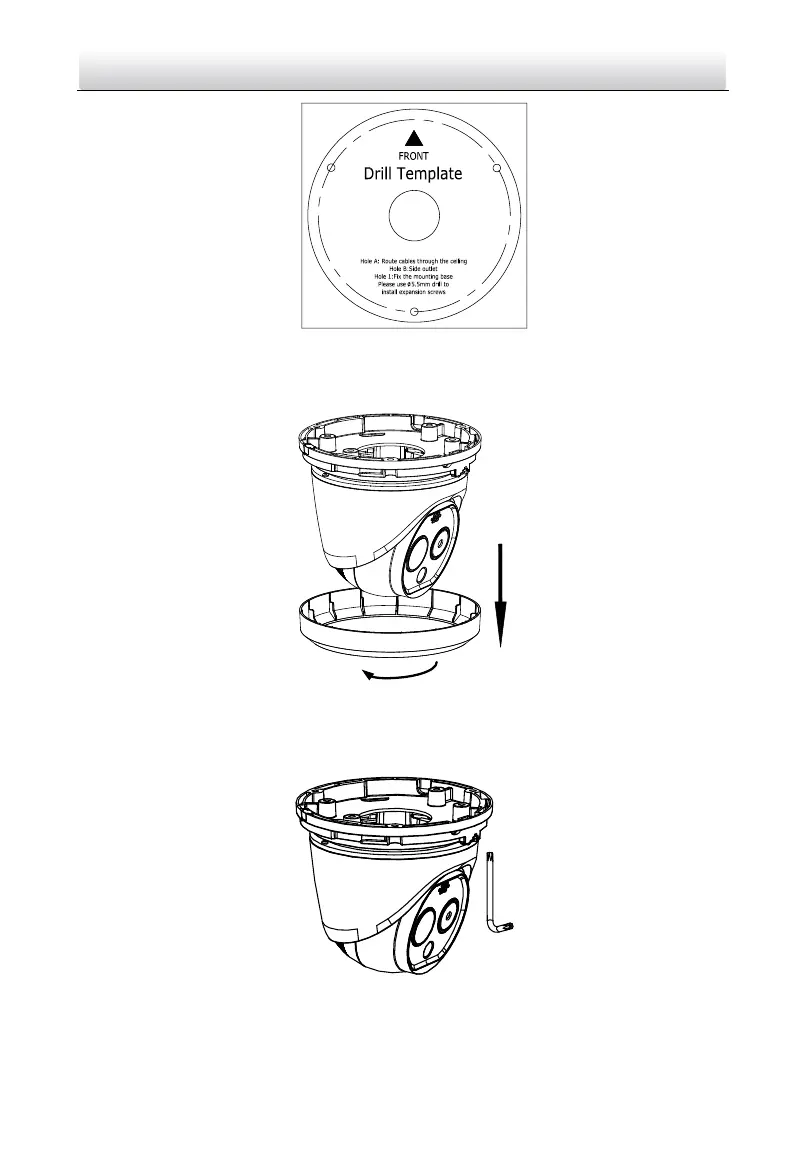

Figure 3-3 Drill Template
2. Turn the ring anticlockwise and remove it.
Note: The ring is only applicable to type II camera.
Figure 3-4 Remove the Ring
3. Loosen the screw and dismount the camera body from the base.
Figure 3-5 Dismount the Camera from Base
4. Mount the camera base according to the position of drill template.
