HIKVISION DS-2TD1217-6/PA

Thermal & Optical Network Turret Camera Quick Start Guide
7
Drill
Template

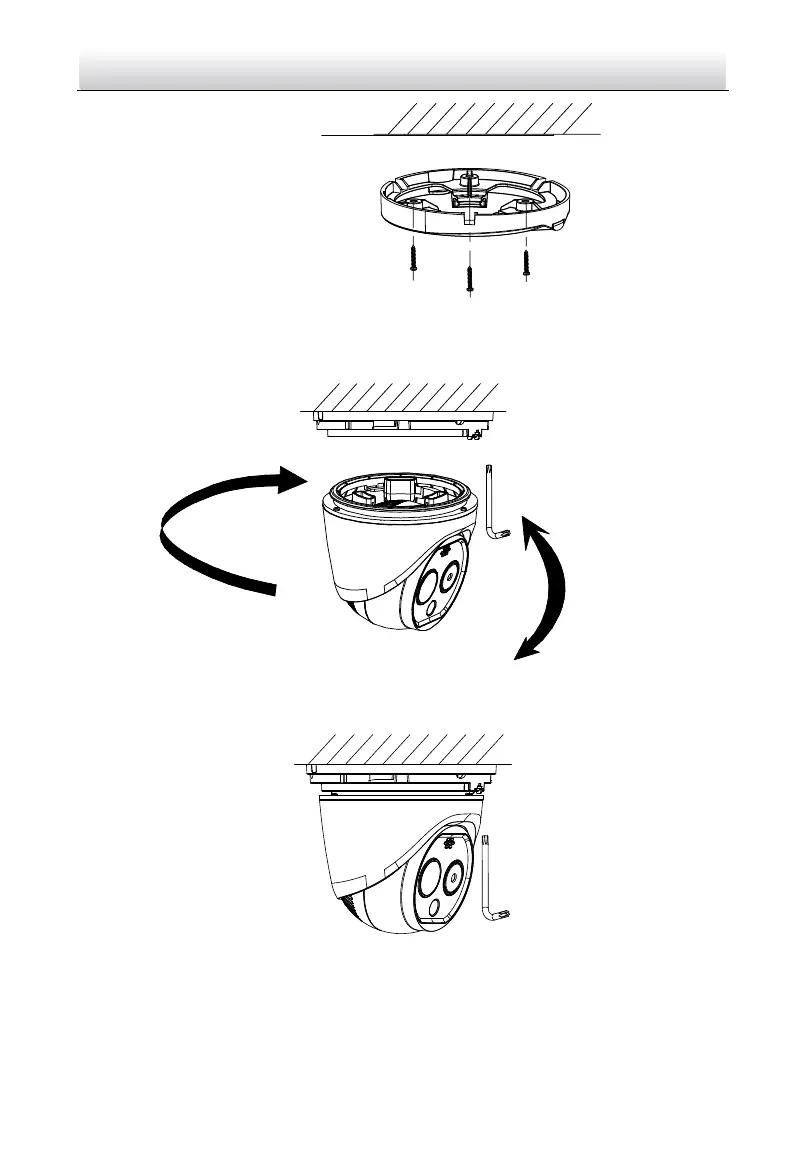

Figure 3-6 Mount the Camera Base
5. Mount the Turret body to the base. Rotate the camera body in the pan direction
(0°~360°) or rotate the lens in the tilt direction (0°~80°) to get the desired view angle.
0-80°
0-360°
Figure 3-7 Mount the Camera Body
6. Screw the screw to fix the camera body on the camera base.
Figure 3-8 Screw the Camera
7. Mount the ring on the camera body, and turn it clockwise to fix the ring.
Note: The ring is only applicable to type II camera.
