HIKVISION DS-2TS03-35UM/W User Manual

2. Plug in the USB cable and connect the
other terminal into the power adapter.
3. Plug the power adapter to the power
source.
When the monocular is turned on, the OSD
(on-screen display) shows the battery
status. When you see the Low Battery
status, charge the monocular and ensure
it’s working properly.
Battery LED Indicator Status
Red Flash
Error occurred.
●
Solid Red
Battery is properly charged.
●
Solid Green
Battery is fully charged.
●
Off
Battery is not charged.
3.2 Power On and Off
Power On
Hold the POWER button for four seconds
and the LED indicator in the front turns
green. After the device is powered on, the
indicator keeps green.

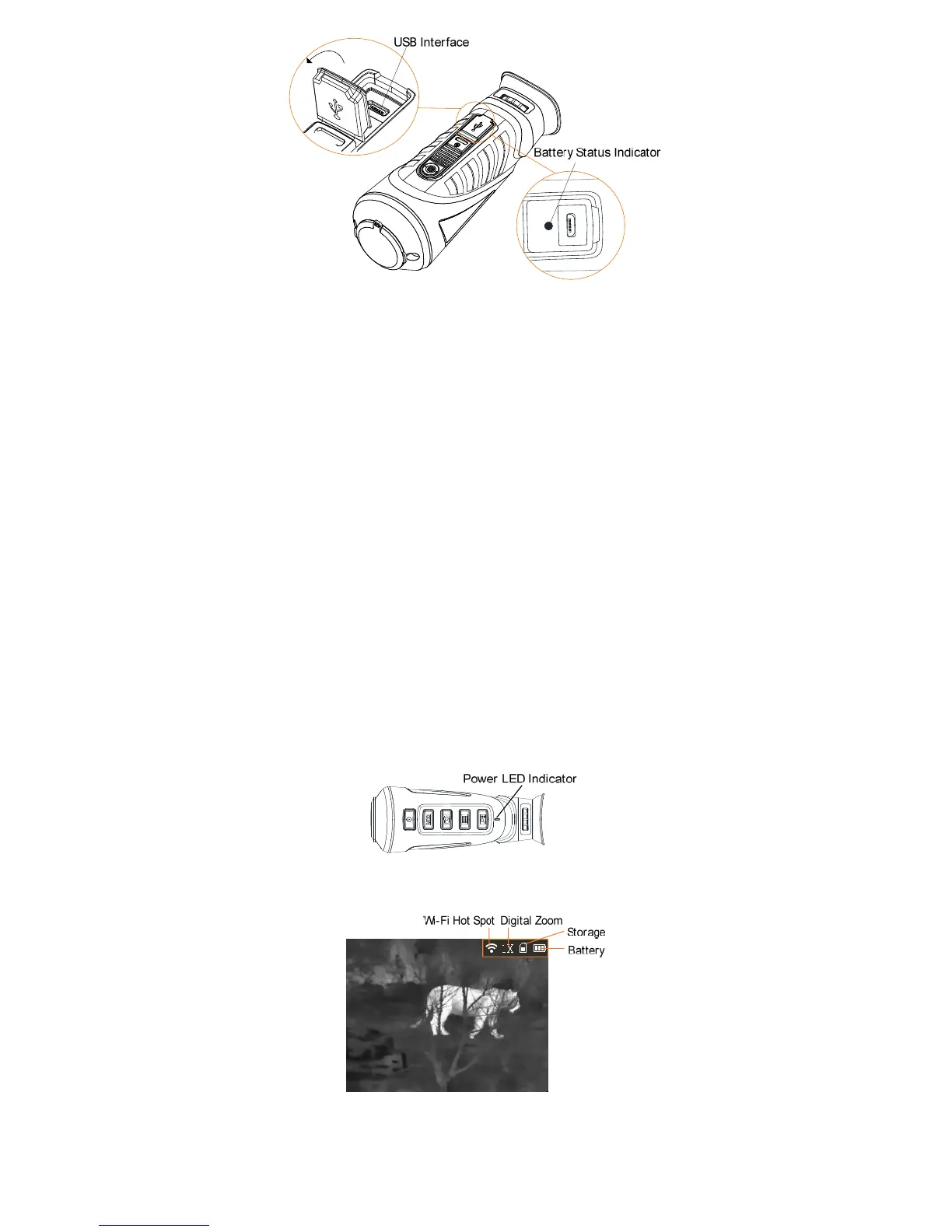

Refer to the figure below for the main view
of the monocular.
Power Off
When the monocular is turned on, hold the
POWER button for four seconds to power
off the device.

HIKVISION DS-2TS03-35UM/W Specifications

General

Brand	HIKVISION
Model	DS-2TS03-35UM/W
Category	Monocular
Language	English
