HIKVISION DS-2XE61 Series

Network Dome Camera·Quick Start Guide
20
3.2 Pendant Mounting
Before you start:
There is no pendant mounting bracket included in the package. You
have to prepare a pendant mounting bracket if you choose this
mounting type. The shown bracket below is only for demonstration.
Ø 100
360
Ø 30
Ø 136±0.2
Ø 80±0.2
4-Ø 6.5
Ø 110±0.2
4-Ø 3.5

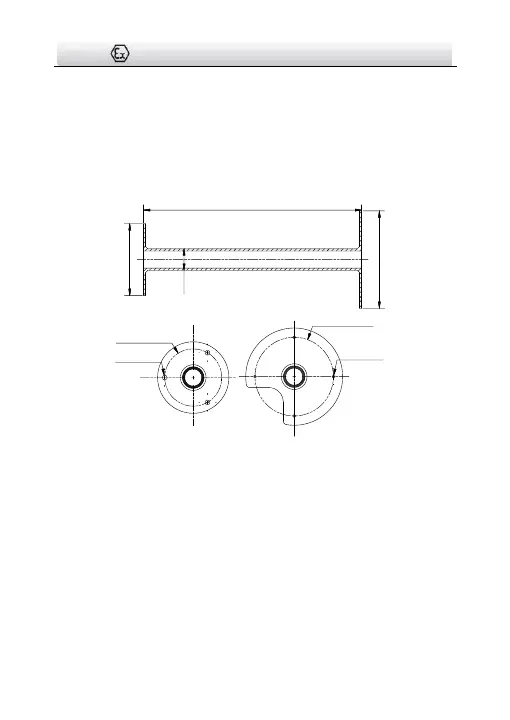

Figure 3-4 DS-1694ZJ Pendant Mount
Steps:
1. Fix the dome camera to pendant mount with four screws
(SC-PSFM3 × 8-SUS).
