HIKVISION DS-2XE6145G0-HS

Network Dome Camera·Quick Start Guide
16
2.2 Cable Description
1
2
3
4
5
1
1
1
2
4
4
8
1

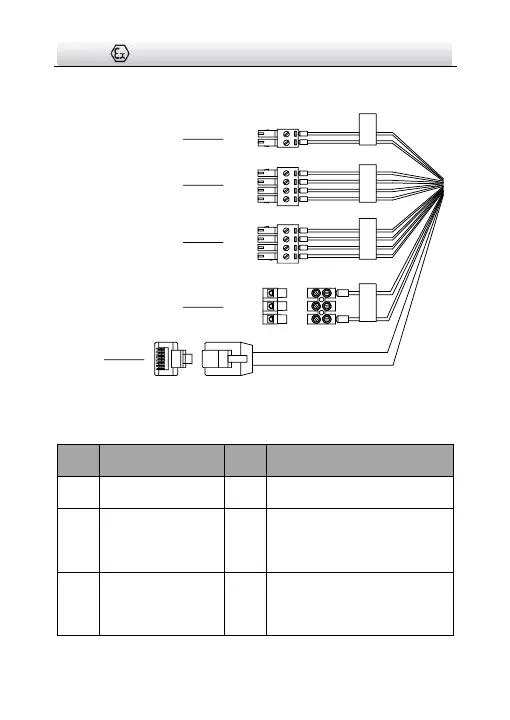

Figure 2-2 Overview of Cables
Table 2-1 Description of Cables
No.
Description
No.
Description
1
RS-485
4
Power cord (9 to 16 VDC)
2
Alarm input and
output
5
RJ45 Ethernet interface (also
supports PoE)
3
Audio input and
output
