HIKVISION DS-2XE6145G0-HS User Manual

Network Dome Camera·Quick Start Guide
20
20

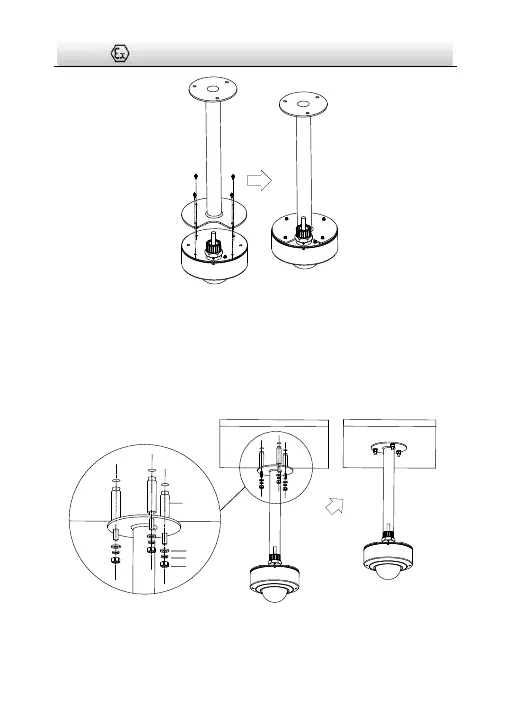

Figure 3-5 Fix Camera to Pendant Mount
2. Mark the 3 screw holes on desired mounting surface according to
the pendant mount.
3. Drill screws holes (Ø 10.5 mm, 0.413 inch) for expansion bolts.
4. Secure the pendant mount to ceiling.
Expansion
Bolt
Nut
Flat Washer
Spring Washer
Figure 3-6 Secure Pendant Mount

HIKVISION DS-2XE6145G0-HS Specifications

General

Brand	HIKVISION
Model	DS-2XE6145G0-HS
Category	Security Camera
Language	English
