HIKVISION DS-2XE6145G0-HS

Network Dome Camera·Quick Start Guide
19

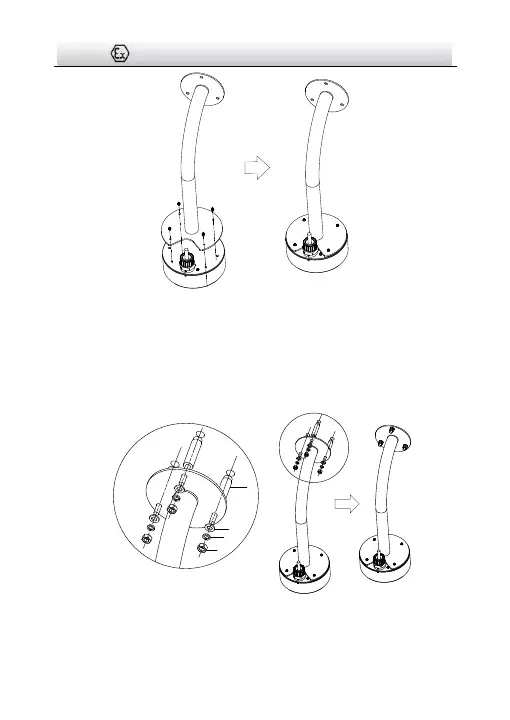

Figure 3-2 Fix Camera to Wall Mount
2. Mark the 3 screw holes on desired mounting surface according to
the wall mount.
3. Drill screws holes (Ø10.5 mm, 0.413 inch) for expansion bolts.
4. Secure the wall mount to wall.
Expansion
Bolt
Nut
Flat Washer
Spring Washer
Figure 3-3 Secure Wall Mount
