Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR
9

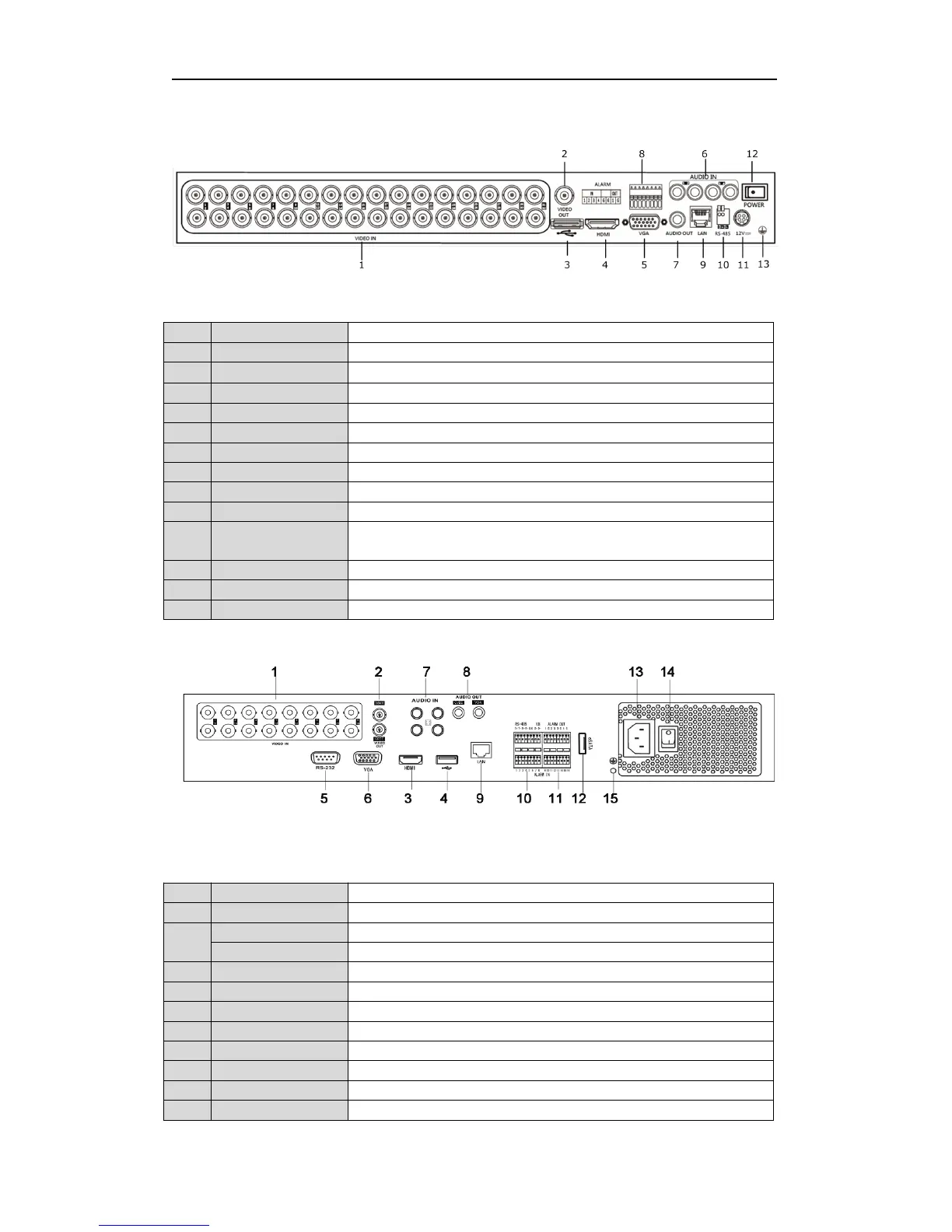

DS-7232HVI-SH and DS-7232HWI-SH:
Note: The rear panel of DS-7224HVI-SH/DS-7224HWI-SH provides 24 video input interfaces.
Table 5 Description of Rear Panel
1 VIDEO IN BNC connector for analog video input.
BNC connector for video output.
3 USB Interface Connects USB mouse or USB flash memory devices.
4 HDMI HDMI video output.
5 VGA DB15 connector for VGA output. Display local video output and menu.
6 AUDIO IN RCA connector for audio input.
7 AUDIO OUT RCA connector for audio output.
8 Alarm In/Out Connector for alarm input/output.
9 LAN Interface RJ45 10M / 100M / 1000M Ethernet interface.
Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and
R- terminals of PTZ receiver respectively.
11 12V 12VDC power supply.
12 POWER Switch for turning on/off the device.
13 GND Ground(needs to be connected when DVR starts up)
DS-7316HFI-SH and DS-7316HWI-SH:
Note: The rear panel of DS-7304HFI-SH/DS-7304HWI-SH provides 4 video input interfaces, and the rear panel
of DS-7308HFI-SH/DS-7308HWI-SH provides 8 video input interfaces.
Table 6 Description of Rear Panel
1 VIDEO IN BNC connector for analog video input.
MAIN VIDEO OUT BNC connector for video output.
SPOT VIDEO OUT BNC connector for spot video output.
3 HDMI HDMI video output.
4 USB Interface Connects USB mouse or USB flash memory devices.
5 RS-232 Connector for RS-232 devices.
6 VGA DB15 connector for VGA output. Display local video output and menu.
7 AUDIO IN RCA connector for audio input.
8 AUDIO OUT RCA connector for audio output.
9 LAN Interface RJ45 10M / 100M / 1000M Ethernet interface.
10 RS-485 Interface Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and
To Next Page
