HIKVISION DS-7204HFI-SH

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR
3

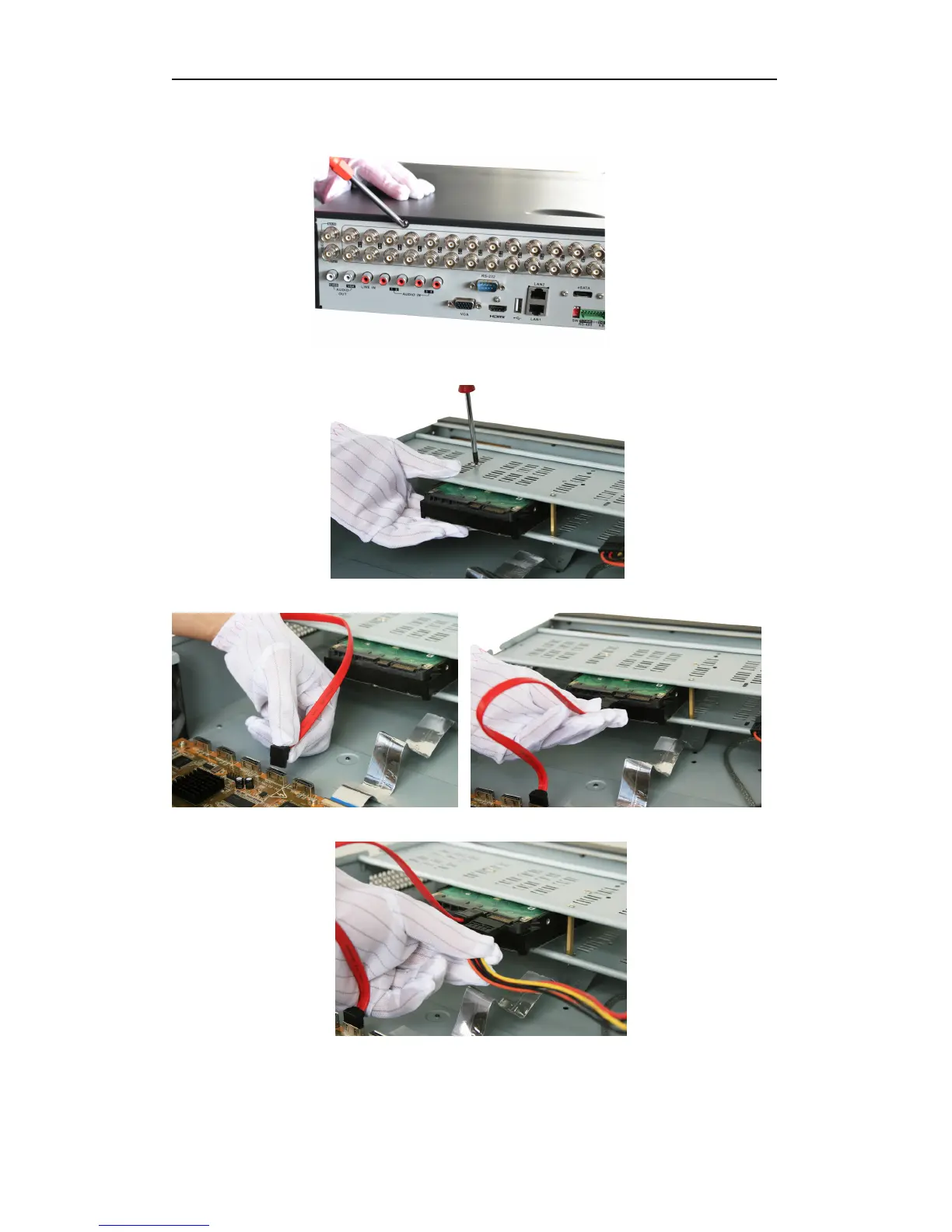

Steps (for DS-8100-SH):
1. Remove the cover from the DVR by unfastening the screws on the back and side.
2. Install the HDD to the HDD rack using the provided screws, and then fasten the screws to fix the HDD.
3. Connect one end of the data cable to the motherboard of DVR and the other end to the HDD.
4. Connect the power cable to the HDD.
5. Re-install the cover of the DVR and fasten screws.
