HIKVISION DS-7204HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
11

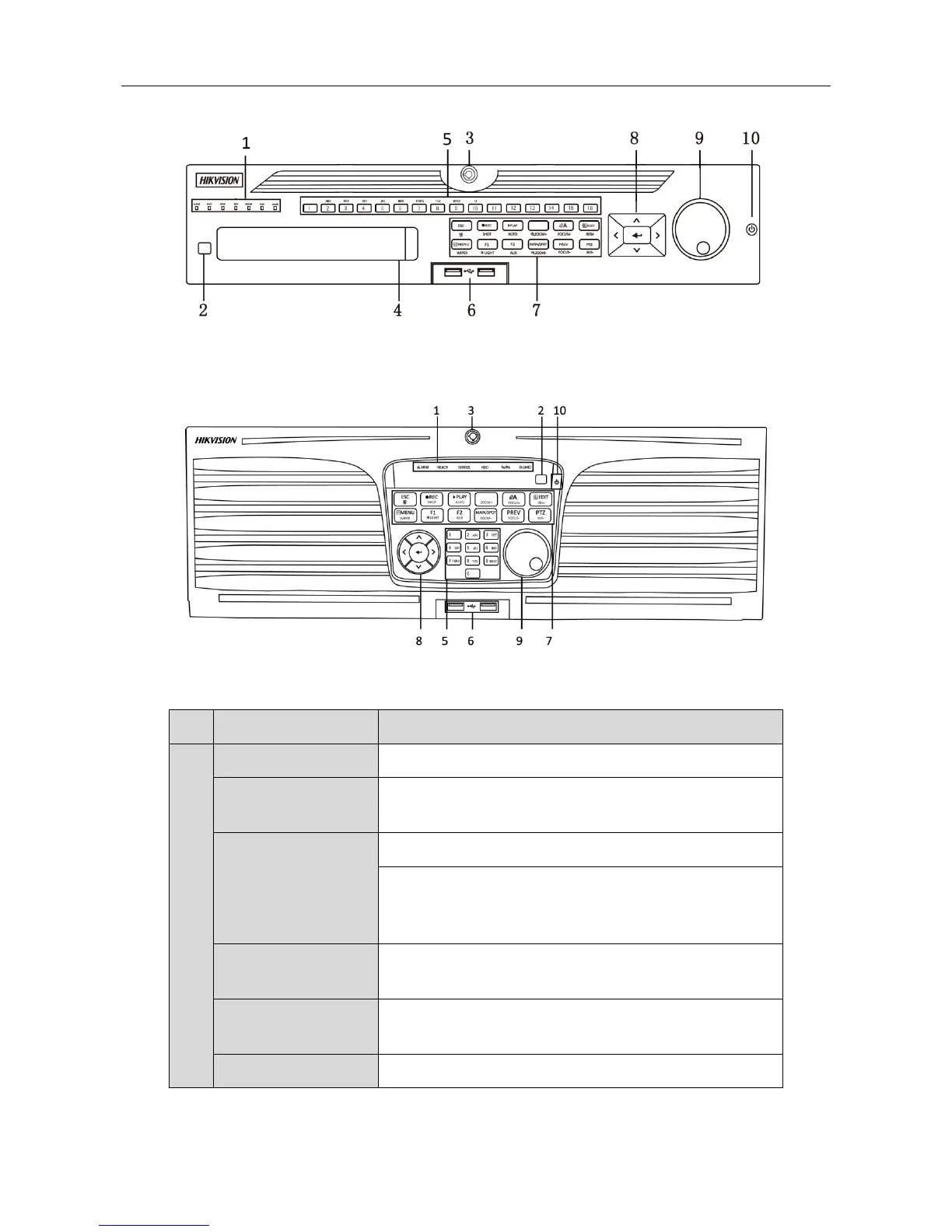

Figure 1-4 Front Panel 4
 Front Panel 5
Figure 1-5 Front Panel 5
Table 1-4 Description of Front Panel 4 and 5
No.
Name
Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns green, indicating that the DVR is functioning
properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
HDD
Flickers in red when data is being read from or written
to HDD.
MODEM
Flickers in green when network connection is
functioning properly.
Tx/Rx
Turns blue when the device is in armed status; at this

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
