Digital Video Recorder User Manual
101

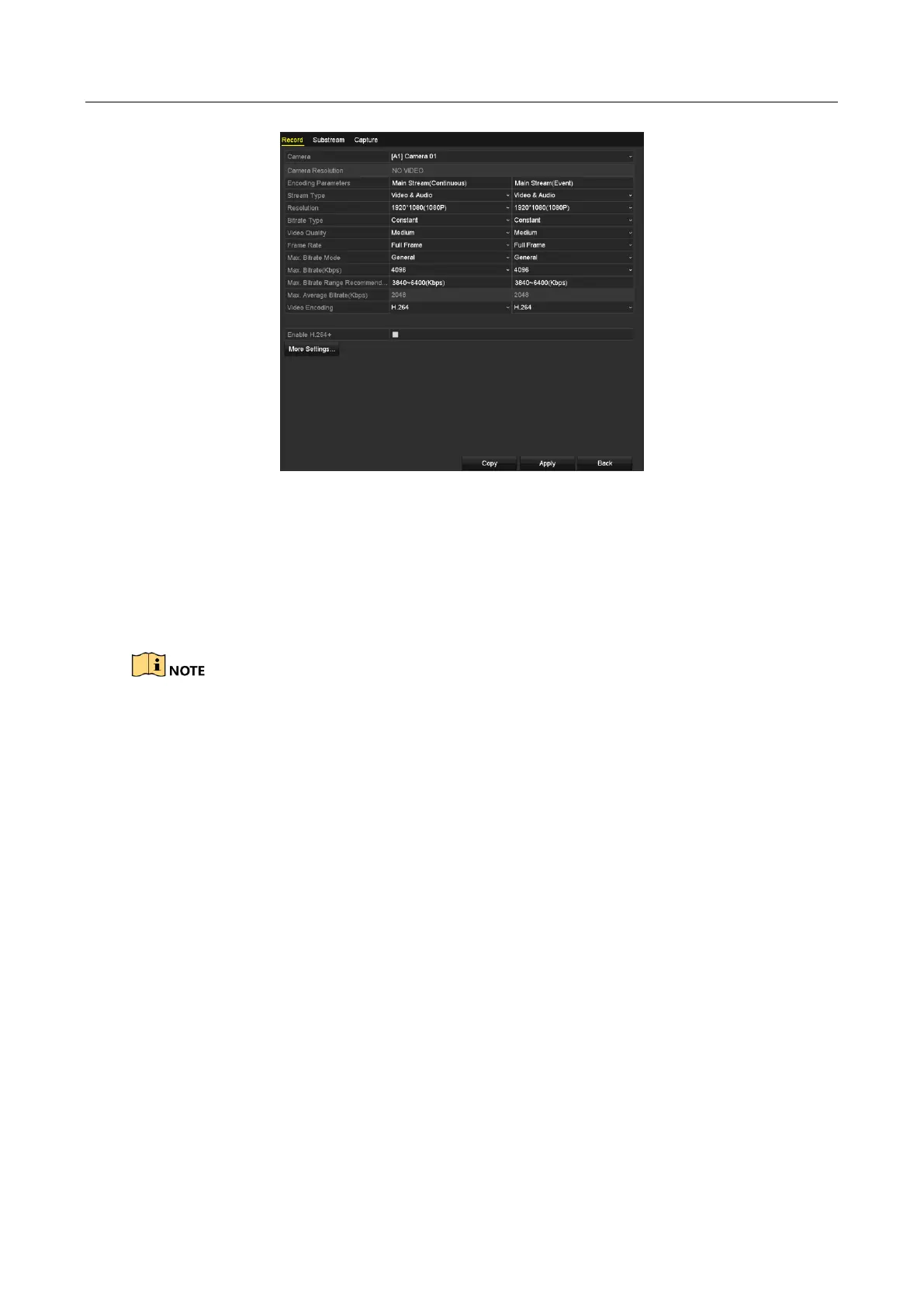

Figure 5-3 Record Parameters
Step 2 Set the parameters for recording.
1) Select the Record tab to configure.
2) Select a camera from the camera dropdown list.
3) View the Camera Resolution.
For -F series DVR, when HDTVI, AHD, or HDCVI input is connected, you can view the information
including the input signal type, resolution and frame rate (e.g., HDTVI 720P25). When CVBS input is
connected, you can view the information such as NTSC or PAL.
4) Configure the following parameters for the Main Stream (Continuous) and the Main
Stream (Event): Stream Type: Set the stream type to be Video or Video & Audio.
Resolution: Set recording resolution.

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
