Digital Video Recorder User Manual
119
5.9 Configuring HDD Group
Purpose
You can group the HDDs and save the record files in certain HDD group.
Step 1 Enter HDD setting interface.
Menu>HDD>Advanced
Step 2 Select Storage Mode tab.
Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed
information, please refer to Chapter 14.3 Managing HDD Group.
Step 3 Select General in the left bar.
Click to enter editing interface.
Step 4 Configuring HDD group.
1) Choose a group number for the HDD group.
2) Click Apply to save your settings.
3) Click OK to back to the upper level menu.
Step 5 Repeat the above steps to configure more HDD groups.
Step 6 Choose the Channels which you want to save the record files in the HDD group.
1) Enter Storage Mode interface.
Menu>HDD>Advanced> Storage Mode

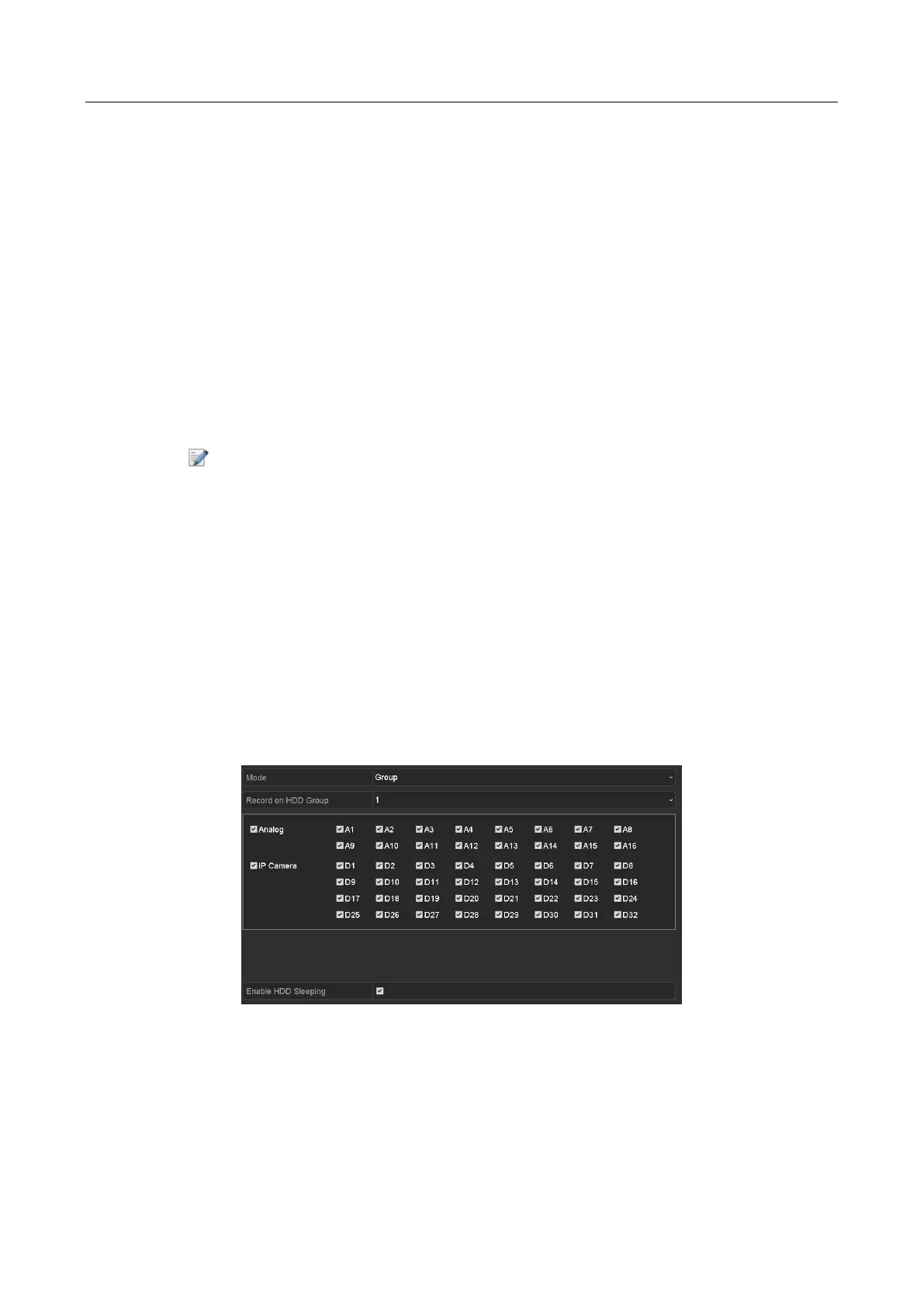

Figure 5-30 HDD Advanced
2) Choose Group number in the dropdown list of Record on HDD Group
3) Check the channels you want to save in this group.
4) Click Apply to save settings.

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
