Digital Video Recorder User Manual
118

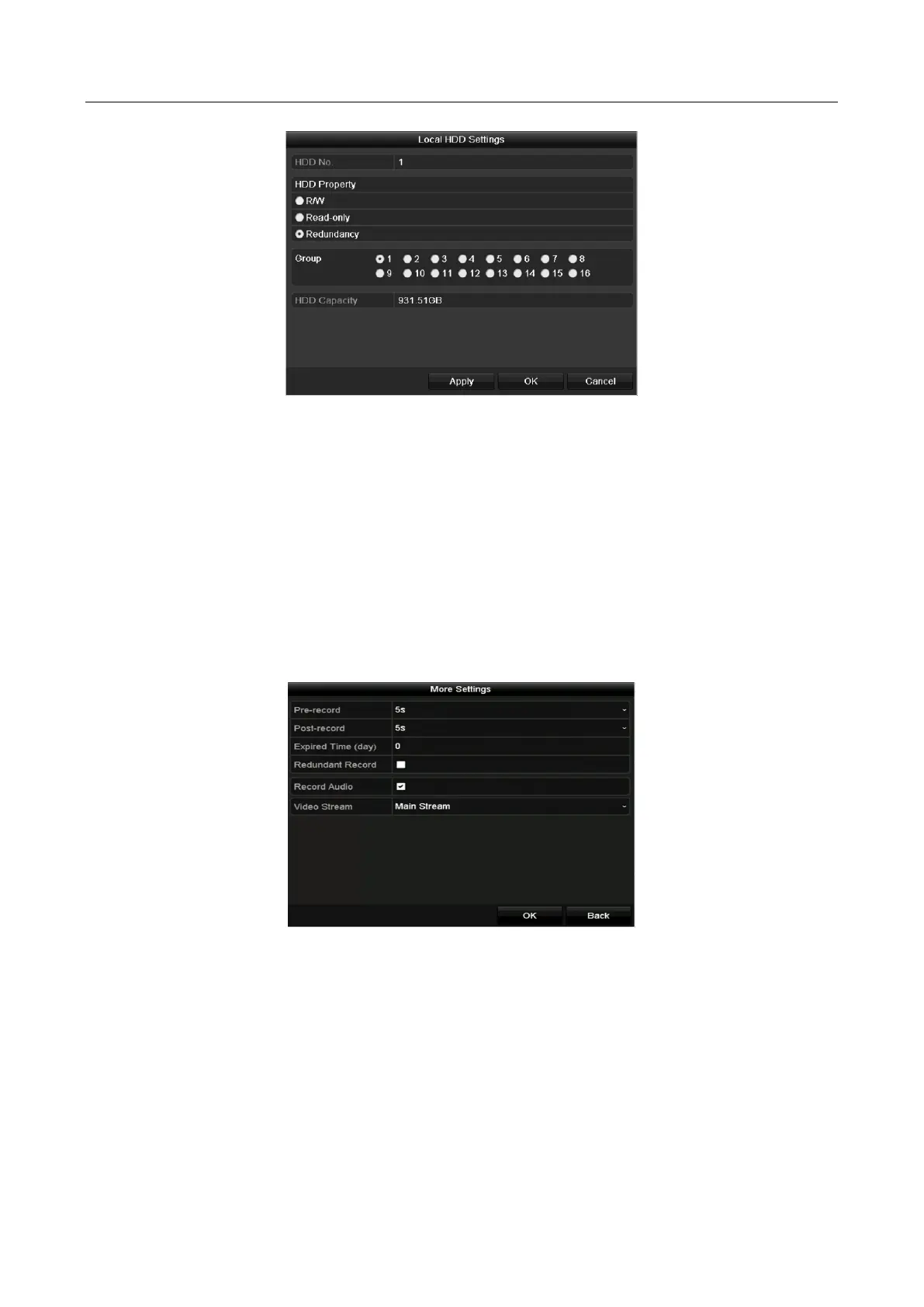

Figure 5-28 HDD General-Editing
2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
Step 3 Enter the Record setting interface.
Menu> Record> Parameters
1) Select the Record tab.
2) Select Camera you want to configure.
3) Click More Settings button.
Figure 5-29 More Settings
4) Check the checkbox of Redundant Record.
5) Click OK to save the settings.
6) If the encoding parameters can also be used to other channels, click Copy and choose the
channel you want to apply the settings.

Table of Contents

Other manuals for HIKVISION DS-7204HGHI-F1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7204HGHI-F1 and is the answer not in the manual?

HIKVISION DS-7204HGHI-F1 Specifications

General IconGeneral
Voltage12 V
Product colorBlack
Rack capacity1U
Audio output channels1.0 channels
Video compression formatsH.264, H.264+
Ethernet LANYes
Ethernet interface typeFast Ethernet
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Video input channels4 channels
USB 2.0 ports quantity2
Power consumption (typical)8 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight1000 g
Dimensions (WxDxH)260 x 222 x 45 mm
