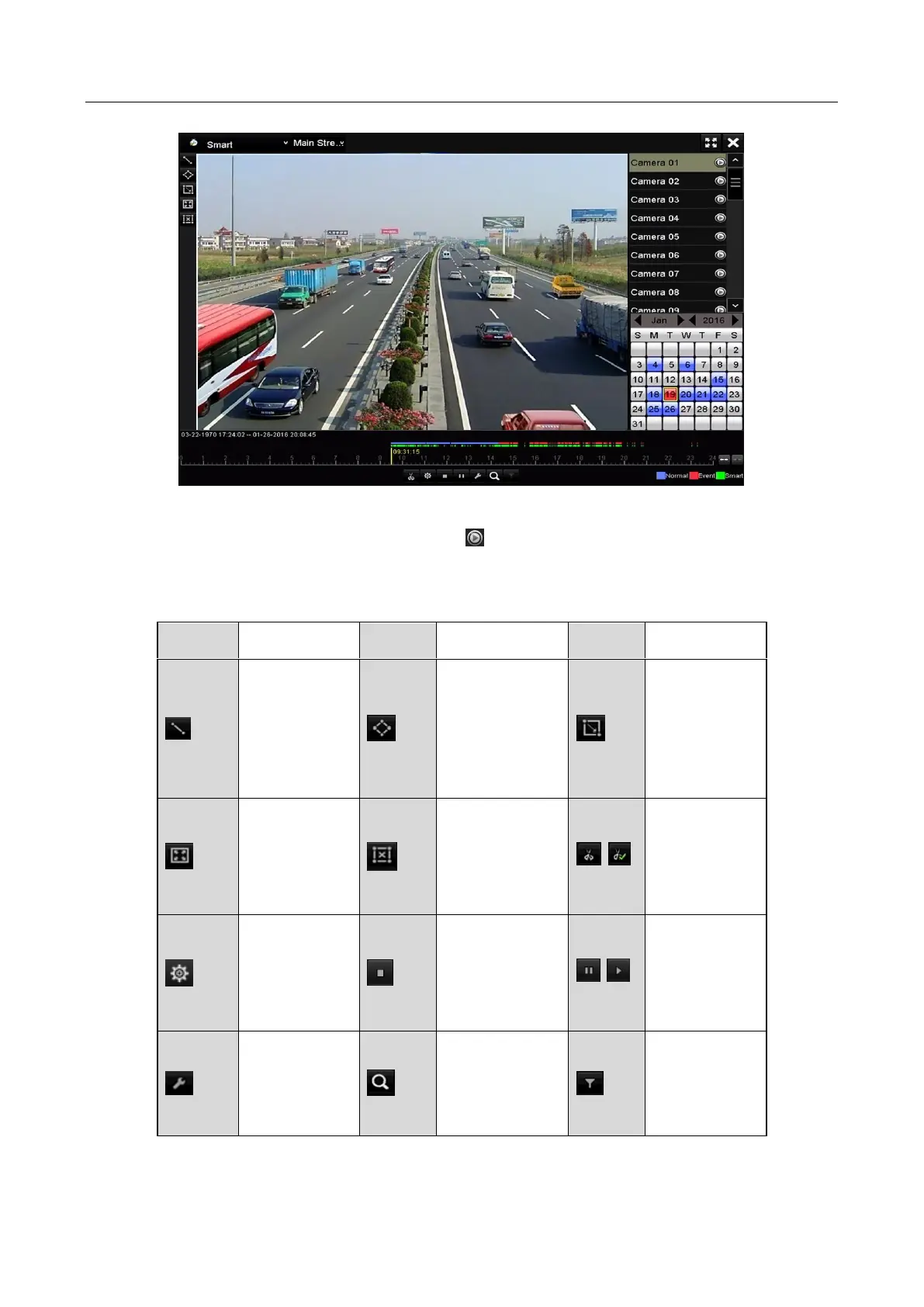

Figure 6-14 Smart Playback Interface
Step 4 Select a date in the calendar and click the button to play.
Refer to Table 6-2 for the descriptions of the buttons on the Smart Playback Toolbar.
Table 6-2 Detailed Explanation of Smart Playback Toolbar
Button
Operation
Button
Operation
Button
Operation
Draw line for
the line
crossing
detection
Draw
quadrilateral
for the
intrusion
detection
Draw
rectangle for
the intrusion
detection
Set full
screen for
motion
detection
Clear all
/
Start/Stop
clipping
File
management
for video
clips
Stop playing
/
Pause playing
/Play
Smart
settings
Search
matched video
files
Filter video
files by
setting the
target

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
