DS-7200-ST Series DVR Quick Operation Guide
9
Note: It is important to note that you must click the EDIT button on either the remote or front panel on a text
field before you are able to edit its content. After you’re done entering text, you must hit the ENTER button to be
able to move on to the next field.

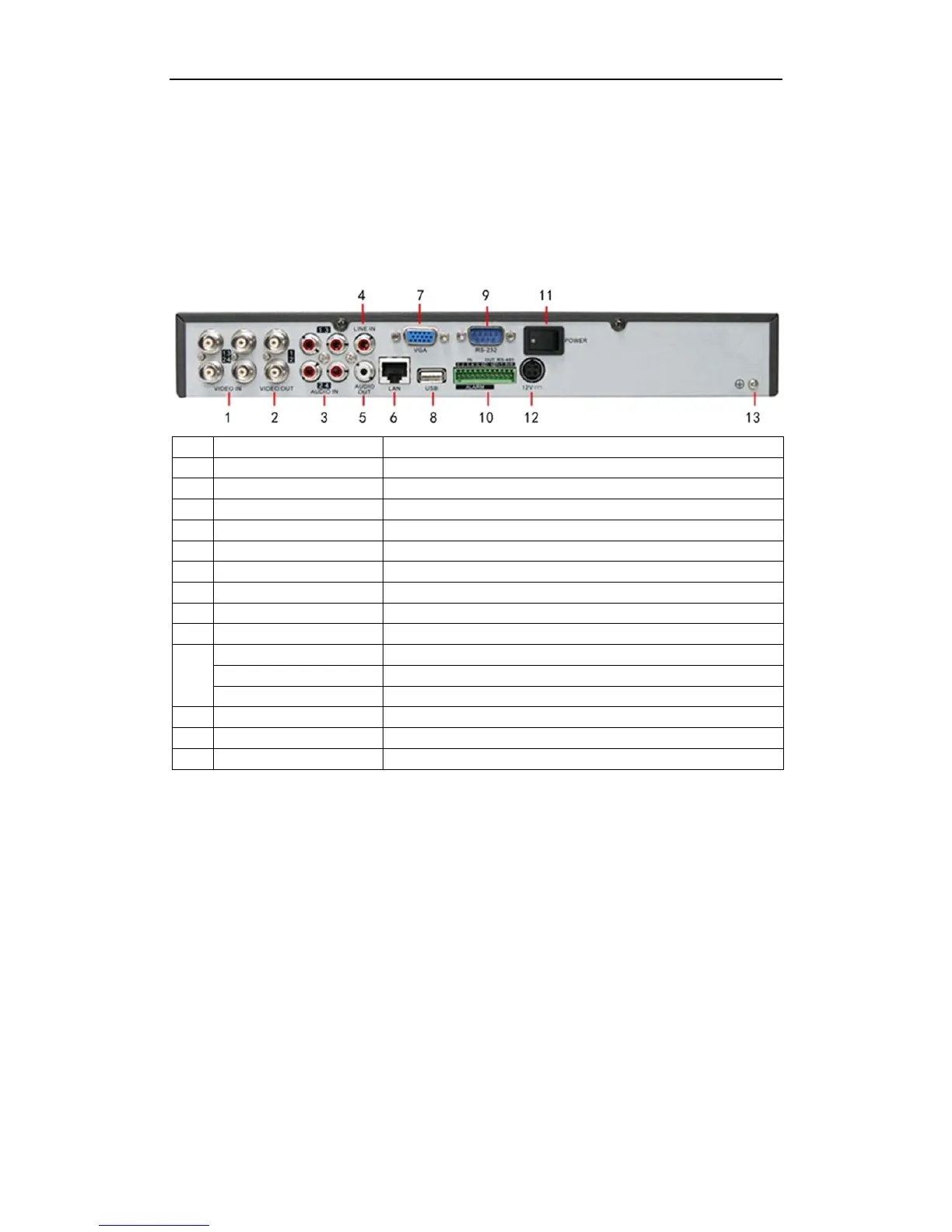

Rear Panel
DS-7204HVI-ST:
No. Item Description
1 VIDEO IN BNC connectors for analog video input
2 VIDEO OUT BNC connector for video output.
3 AUDIO IN RCA connectors for analog audio input
4 LINE IN RCA connector for audio input
5 AUDIO OUT RCA connector for audio output
6 LAN Connector for LAN (Local Area Network)
7 VGA DB15 connector for VGA output. Display local video output and menu
8 USB Connector for USB devices
9 RS-232 Interface DB9 connector for RS232 devices
10 ALARM IN Connector for alarm input
ALARM OUT Connector for alarm output
RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ
11 POWER Switch for turn on/off the device
12 12V 12VDC power supply
13 GND Ground(needs to be connected when DVR starts up)
