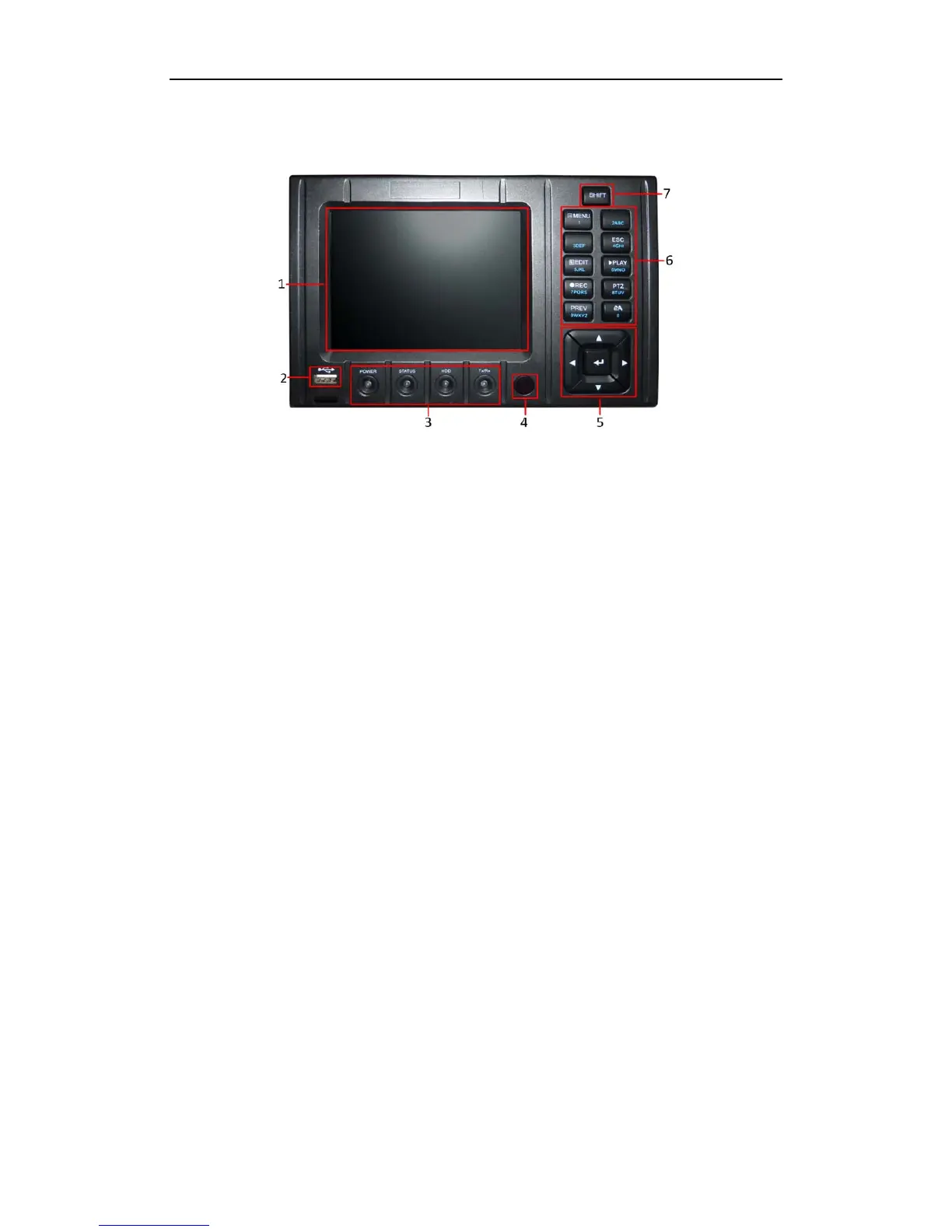

HIKVISION DS-7204HVI-ST - Specifications

Hikvision Technical Manual
©2006
–
2011 by HIKVISION. All rights reserved.
Specifications
Model DS-7216HVI-ST
Video/Audio
input
Video
compression
H.264
Analog video
input
16-ch, BNC connector (1.0 Vp-p, 75 Ω);
PAL / NTSC adaptive
Audio
compression
G.711
Audio input 4-ch, RCA connector (2 Vp-p, 1 kΩ)
Voice talk input
1-ch, RCA (2.0 Vp-p, 1 kΩ
）
VGA output 1-ch, resolution: 1024 × 768/60 Hz
CVBS output
2-ch, BNC connector (1.0 Vp-p, 75 Ω);
Resolution: PAL: 704 × 576,
NTSC: 704 × 480
Audio output 1-ch, RCA connector (Linear, 1 kΩ)
Video/Audio
output
Recording
resolution
4CIF / 2CIF / CIF / QCIF
Frame rate
4CIF / 2CIF: 6 fps
CIF / QCIF: 25 fps (P) /30 fps (N)
Video bit rate
32 kbps ~ 2048 kbps, or user-defined
(Max. 3072 kbps)
Stream type Video / Video & Audio
Audio bit rate 64 kbps
Dual stream Support
Synchronous
playback
16-ch
Hard disk
Type 2 SATA interfaces
Capacity Up to 2 TB capacity for each interface
External
interface
Network interface
1, RJ45 10 M / 100 M adaptive Ethernet
interface
Serial interface 1 RS-485 interface, 1 RS-232 interface
USB interface 2, USB 2.0
Alarm in 16
Alarm out 4
Others
Power supply 12 VDC
Consumption ≤15 W (without hard disk or DVD-R/W)
Working
temperature
- 10
℃
~ + 55
℃
Working humidity 10% ~ 90%
Chassis
19-inch standard rack-mounted 1.5 U
chassis
Dimensions
(W x D x H)
440 ×390 ×70 mm
Weight ≤8 kg (without hard disk or DVD-R/W)
