DS-7200-ST Series DVR Quick Operation Guide
1
Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.
This manual is applicable to DS-7204HVI-ST, DS-7208HVI-ST, DS-7216HVI-ST; DS-7204HVI-ST/SE,
DS-7208HVI-ST/SE, DS-7216HVI-ST/SE; DS-7204HFI-ST, DS-7208HFI-ST, DS-7216HFI-ST;
DS-7204HFI-ST/SE, DS-7208HFI-ST/SE, DS-7216HFI-ST/SE; DS-7204HVI-ST/SN, DS-7208HVI-ST/SN,
DS-7216HVI-ST/SN; DS-7204HFI-ST/SN, DS-7208HFI-ST/SN, DS-7216HFI-ST/SN; DS-7204HVI-ST/RW,
DS-7208HVI-ST/RW, DS-7216HVI-ST/RW; DS-7204HFI-ST/RW, DS-7208HFI-ST/RW, DS-7216HFI-ST/RW;
and DS-7204HVI-ST/L series DVR.
Verify Contents
Verify that the package contents are correct by checking the items against the packing list.
Note: Please contact your dealer for damaged or missing items.
DVR Pre-Installation
The DS-7200-ST Series DVR is highly advanced surveillance equipment that should be installed with care. Please
take into consideration the following precautionary steps before installation of the DVR.
1. Keep all liquids away from the DVR.
2. Install the DVR in a well-ventilated and dust-free area.
3. Ensure environmental conditions meet factory specifications.
4. Install a manufacturer recommended HDD.
DVR Installation
During the installation of the DVR:
1. Use brackets for rack mounting.
2. Ensure there is ample room for audio and video cables.
3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
4. Connect both the alarm and RS-485 cable.
5. Allow at least 2cm (~0.75in) of space between racks mounted devices.
6. Ensure the DVR is grounded.
7. Environmental temperature should be within the range of -10
ºC ~ 55 ºC, 14ºF ~ 131ºF.
8. Environmental humidity should be within the range of 10% ~ 90%.
Hard Disk Installation
Before installing a hard disk drive (HDD), please make sure the power is disconnected from the DVR. A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.
To install a HDD on your DVR:

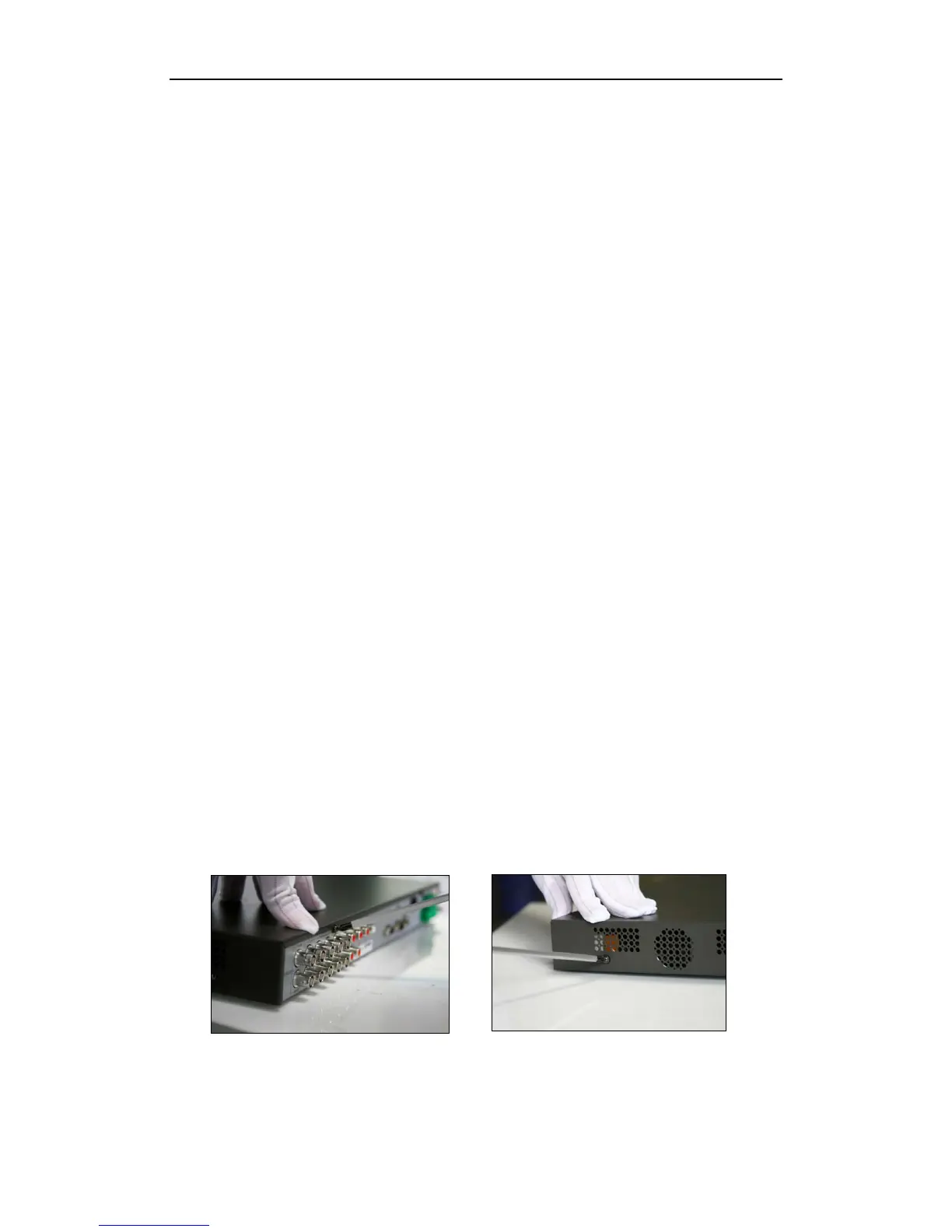

1. Remove the cover from the DVR by unfastening the screws on the back and side.
2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the button to fix
the HDD.
