HIKVISION DS-7208HQHI-F1/N User Manual

Digital Video Recorder User Manual
50
No.
Item
Description
D+, D- pin connects to Ta, Tb pin of controller. For
cascading devices, the first DVR’s D+, D- pin should
be connected with the D+, D- pin of the next DVR.
Connector for alarm input.
Connector for alarm output.
10
Power Supply
100 to 240V AC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GND
Ground
13
LINE IN
BNC connector for audio input.
14
eSATA
Connects external SATA HDD, CD/DVD-RW.
15
RS-232 Interface
Connector for RS-232 devices.

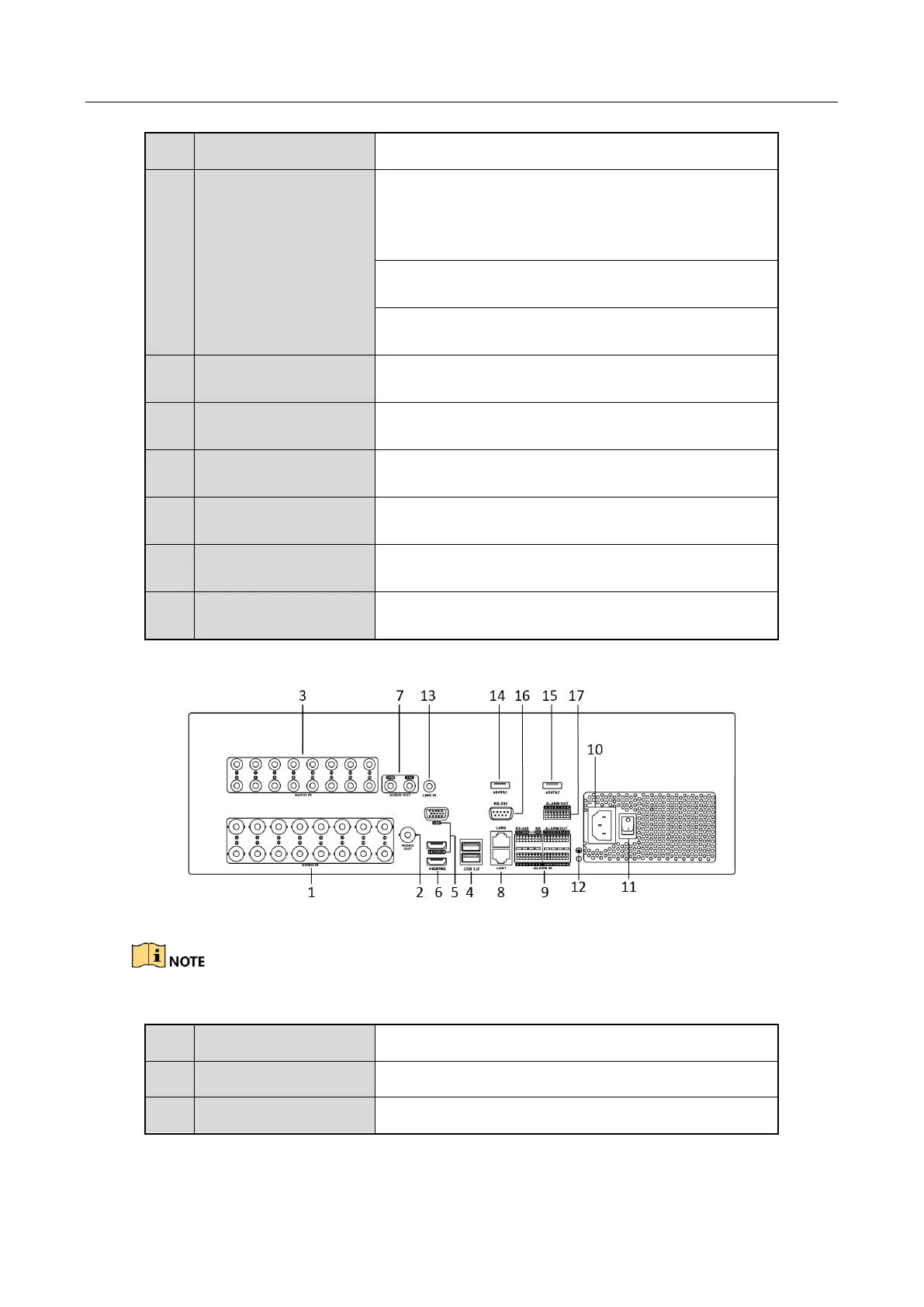

Rear Panel 12:
Figure 1-22 Rear Panel of DS-9000HUHI-F16/N
The rear panel of DS-9008HUHI-F16/N provides 8 video input interfaces.
Table 1-16 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC interface for TVI and analog video input.
2
VIDEO OUT
BNC connector for video output.

HIKVISION DS-7208HQHI-F1/N Specifications

General

Brand	HIKVISION
Model	DS-7208HQHI-F1/N
Category	DVR
Language	English
