No.
Item
Description
12
GND
Ground
13
LINE IN
BNC connector for audio input.
14
eSATA
Connects external SATA HDD, CD/DVD-RW.
15
RS-232 Interface
Connector for RS-232 devices.

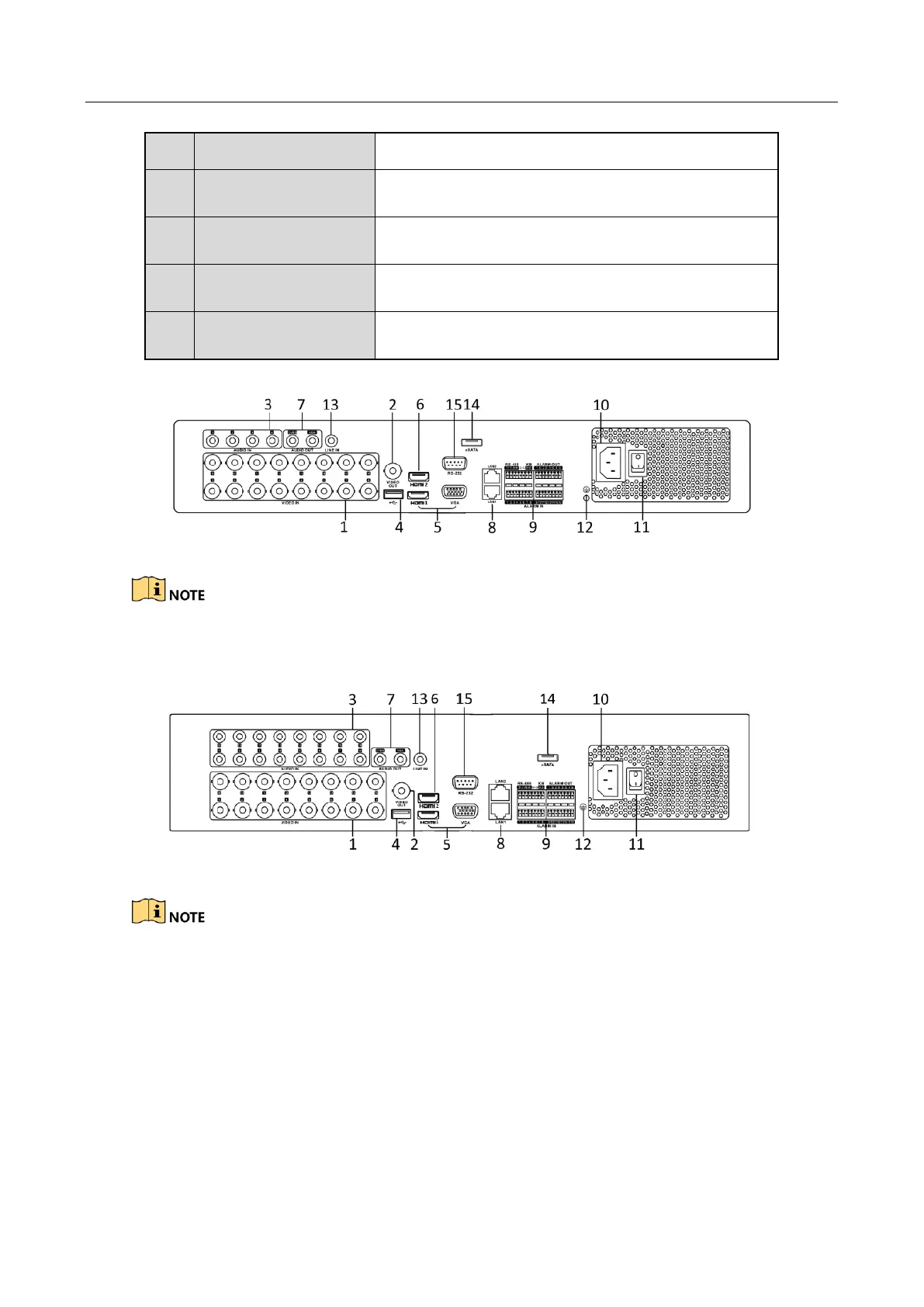

Rear Panel 9:
Figure 1-19 Rear Panel of DS-7300HUHI-F4/N
The rear panel of DS-7304HUHI-F4/N and DS-7308HUHI-F4/N provide 4 and 8 video input interfaces
respectively.
Rear Panel 10:
Figure 1-20 Rear Panel of DS-8100HUHI-F8/N
The rear panel of DS-8104HUHI-F8/N and DS-8108HUHI-F8/N provide 4 and 8 video input interfaces
respectively.
