Digital Video Recorder User Manual
49

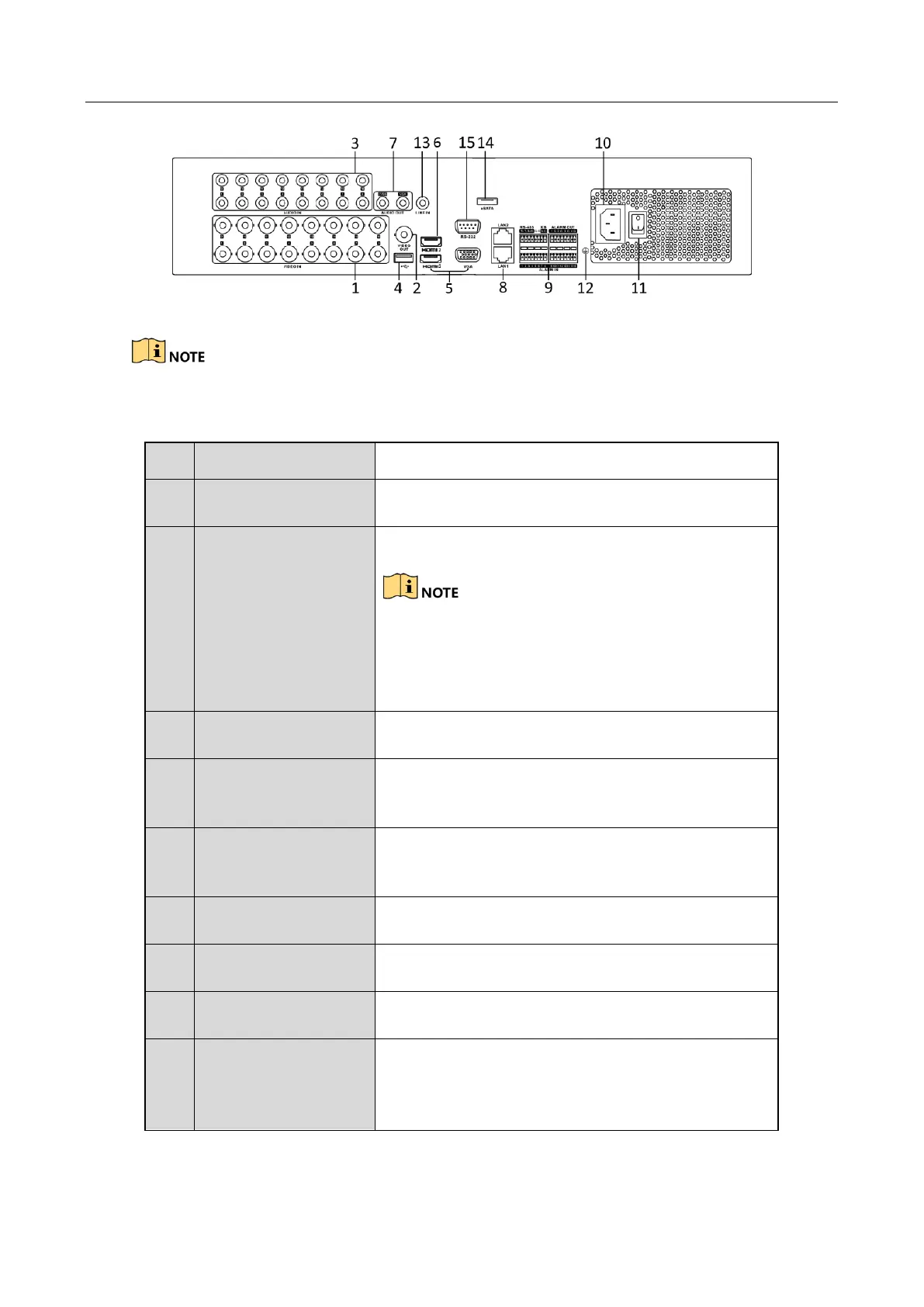

Figure 1-21 Rear Panel of DS-9000HUHI-F8/N
The rear panel of DS-9004HUHI-F8/N and DS-9008HUHI-F8/N provide 4 and 8 video input interfaces
respectively.
Table 1-15 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC interface for HDTVI and analog video input.
2
VIDEO OUT
BNC connector for video output.
CVBS output is not provided by DS-7100/7200HGHI-E1,
DS-7200HGHI-E2, DS-7100/7200HGHI-F1,
DS-7200HGHI-F2, DS-7100HQHI-F1/N and
DS-7100HGHI-F1/N series DVR.
3
AUDIO IN
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional
devices.
5
HDMI1/VGA
Simultaneous HDMI1/VGA output. Display local
video output and menu.
6
HDMI2
HDMI2 video output connector.
7
AUDIO OUT
RCA connector.
8
Network Interface
Connector for network
9
RS-485 and Alarm
Interface
Connector for RS-485 devices. T+ and T- pins
connect to R+ and R- pins of PTZ receiver
respectively.
