Digital Video Recorder User Manual
136

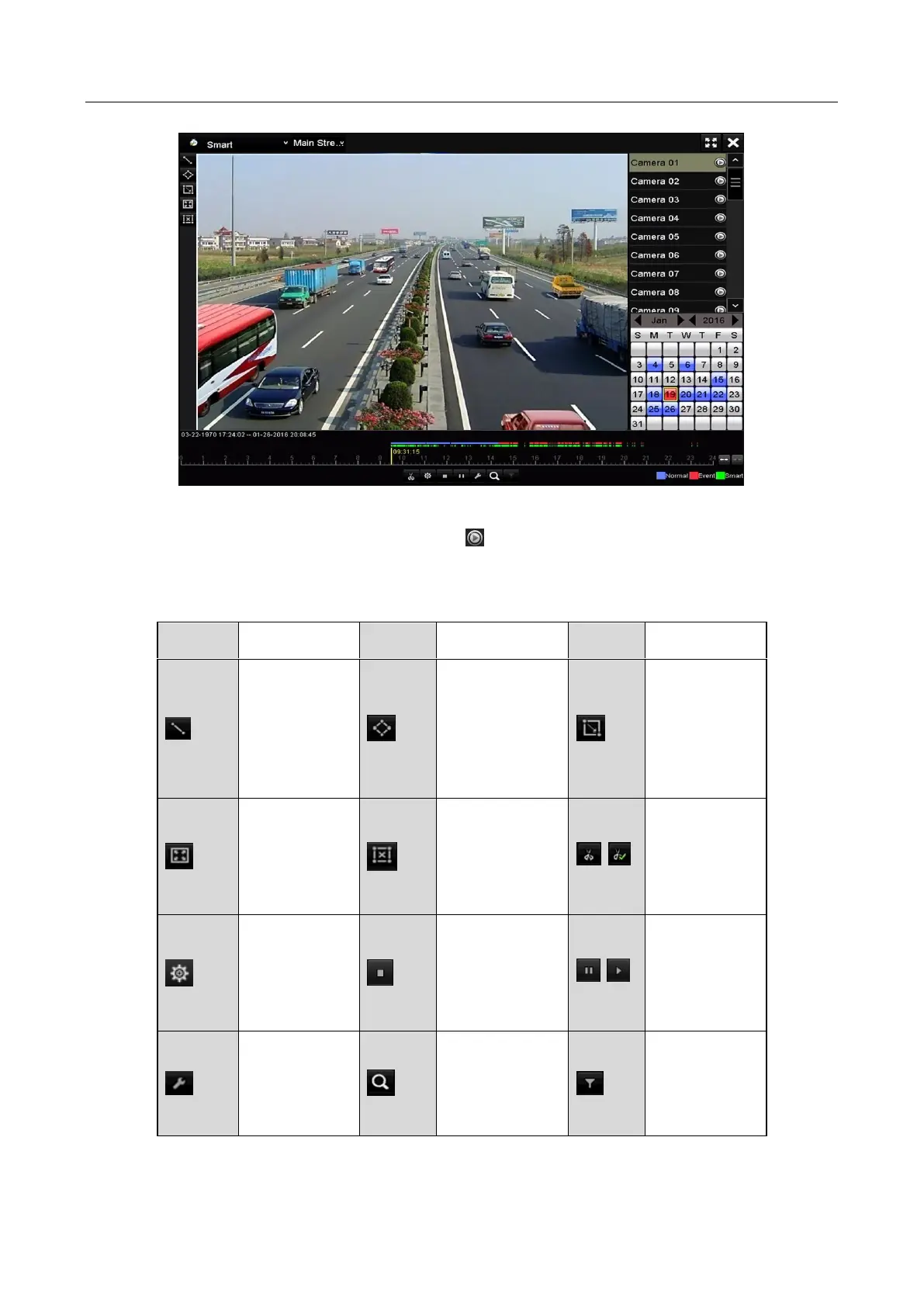

Figure 6-14 Smart Playback Interface
Step 4 Select a date in the calendar and click the button to play.
Refer to Table 6-2 for the descriptions of the buttons on the Smart Playback Toolbar.
Table 6-2 Detailed Explanation of Smart Playback Toolbar
Button
Operation
Button
Operation
Button
Operation
Draw line for
the line
crossing
detection
Draw
quadrilateral
for the
intrusion
detection
Draw
rectangle for
the intrusion
detection
Set full
screen for
motion
detection
Clear all
/
Start/Stop
clipping
File
management
for video
clips
Stop playing
/
Pause playing
/Play
Smart
settings
Search
matched video
files
Filter video
files by
setting the
target
