Step 2 Select the Image Settings tab.

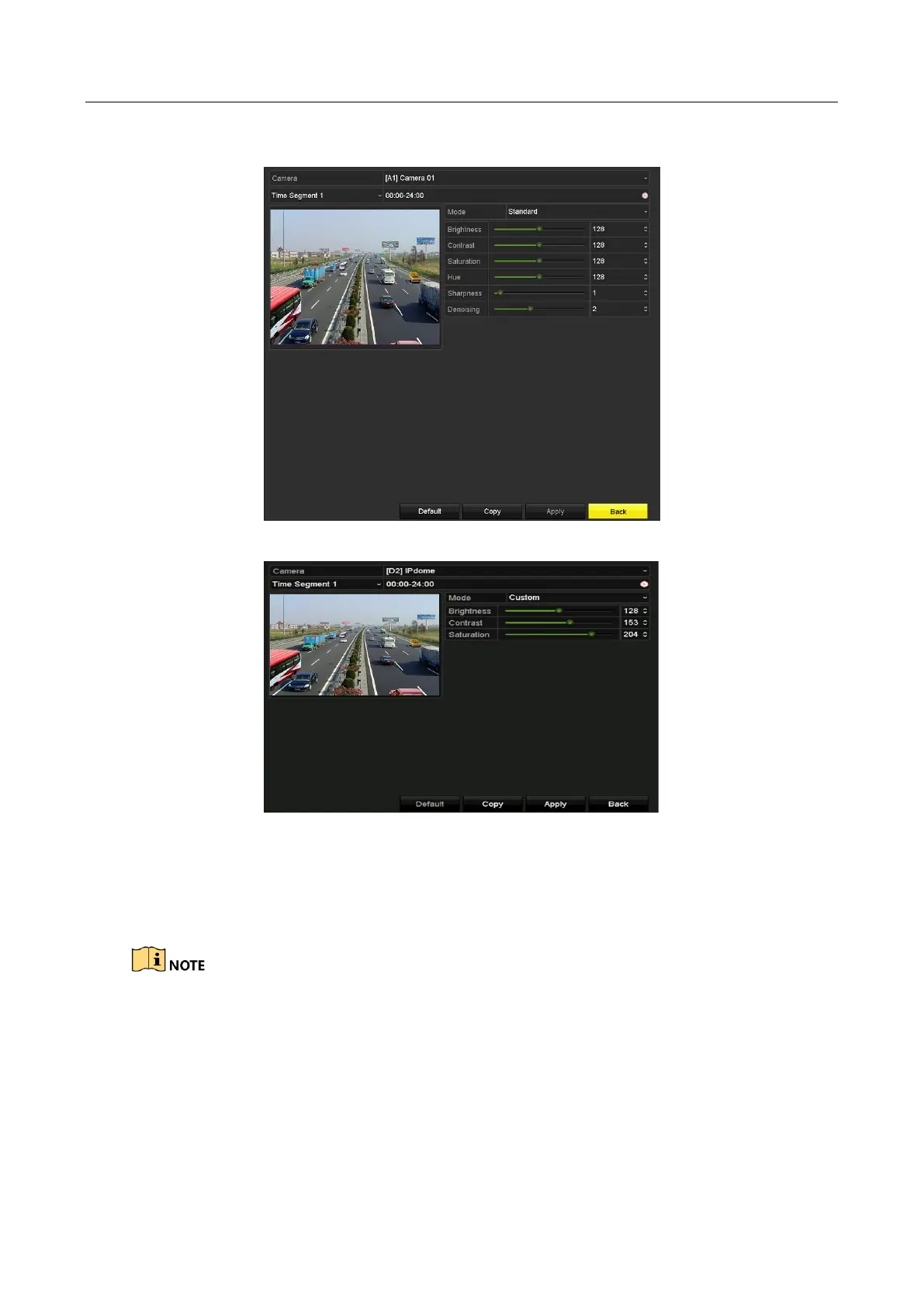

Figure 15-5 Image Settings Interface (Analog Camera)
Figure 15-6 Image Settings Interface (IP Camera)
Step 3 Select the camera to set image parameters.
Step 4 Two periods for different image settings are provided, select the period name in the
dropdown list.
The time periods cannot be overlapped with each other.
Step 5 Select the mode from the drop-down list of Mode, there are four modes selectable for the
analog cameras: Standard, Indoor, Dim Light and Outdoor.
Step 6 Adjust the image parameters according to actual needs. The parameters include Brightness,
Contrast, Saturation, Hue, Sharpness and Denoising for the analog cameras and Brightness,

HIKVISION DS-7216HGHI-F1 Specifications

General

Audio input	1
BNC input ports	16
Video input channels	16 channels
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	20 W
Bit rate	64 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	SATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1200 g
