HIKVISION DS-7216HGHI-F1 User Manual

Digital Video Recorder User Manual
248

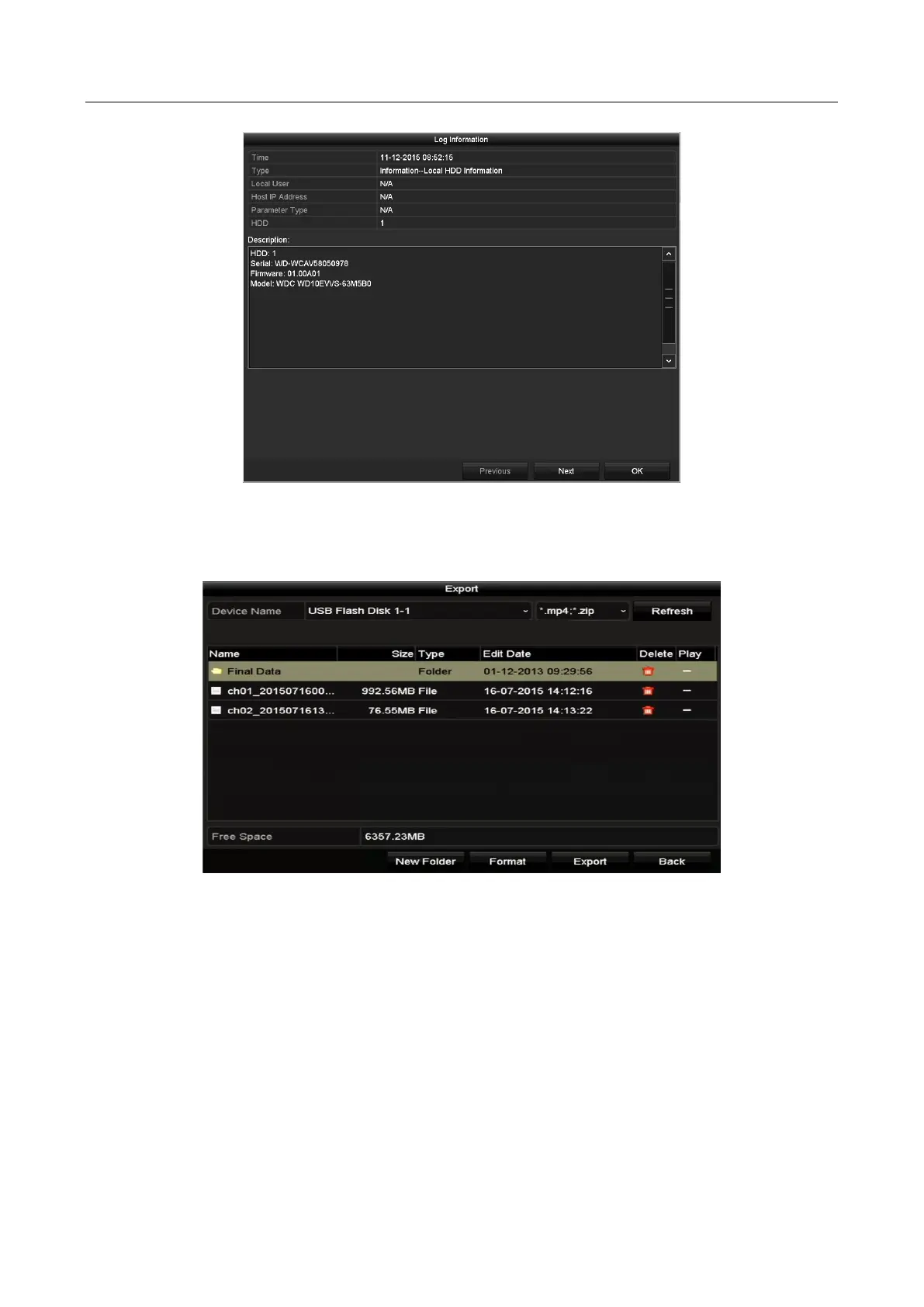

Figure 16-4 Log Information Interface
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-5.
Figure 16-5 Export Log Files
Step 7 Select the backup device from the dropdown list of Device Name.
Step 8 Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the
Format button to format the backup device before log export.

HIKVISION DS-7216HGHI-F1 Specifications

General

Audio input	1
BNC input ports	16
Video input channels	16 channels
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	20 W
Bit rate	64 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	SATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1200 g
