Digital Video Recorder User Manual
46
No.
Item
Description
8
RS-485 Interface
Connector for RS-485 devices.
9
Power Supply
12VDC power supply.
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
12
VIDEO OUT
BNC connector for video output.
13
Alarm In/Out
Connector for alarm input and output.

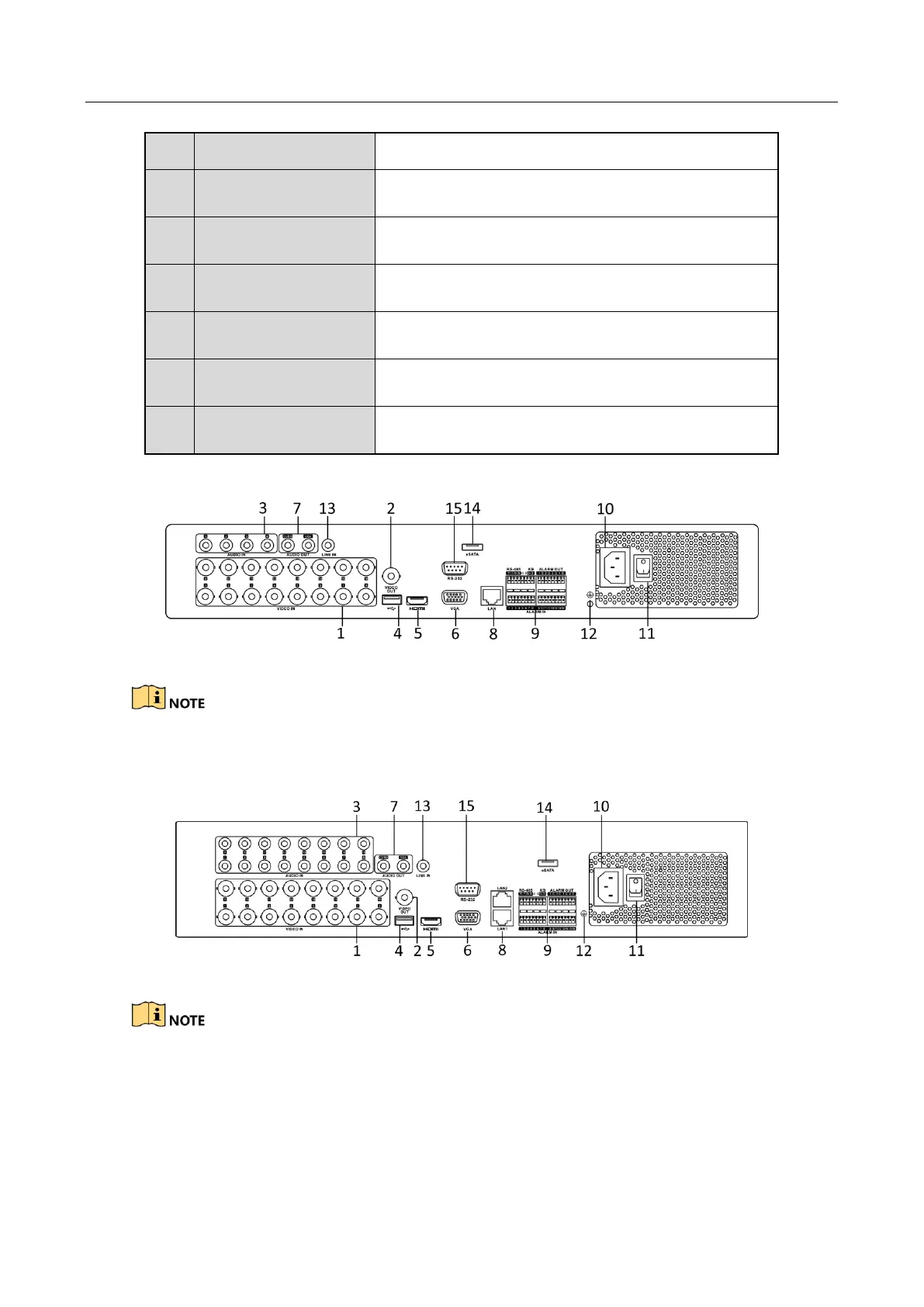

Rear Panel 7:
Figure 1-17 Rear Panel of DS-7300HQHI-F4/N
The rear panel of DS-7304HQHI-F4/N and DS-7308HQHI-F4/N provide 4 and 8 video input
interfaces respectively.
Rear Panel 8:
Figure 1-18 Rear Panel of DS-8100HQHI-F8/N
The rear panel of DS-8104HQHI-F8/N and DS-8108HQHI-F8/N provide 4 and 8 video input
interfaces respectively.
