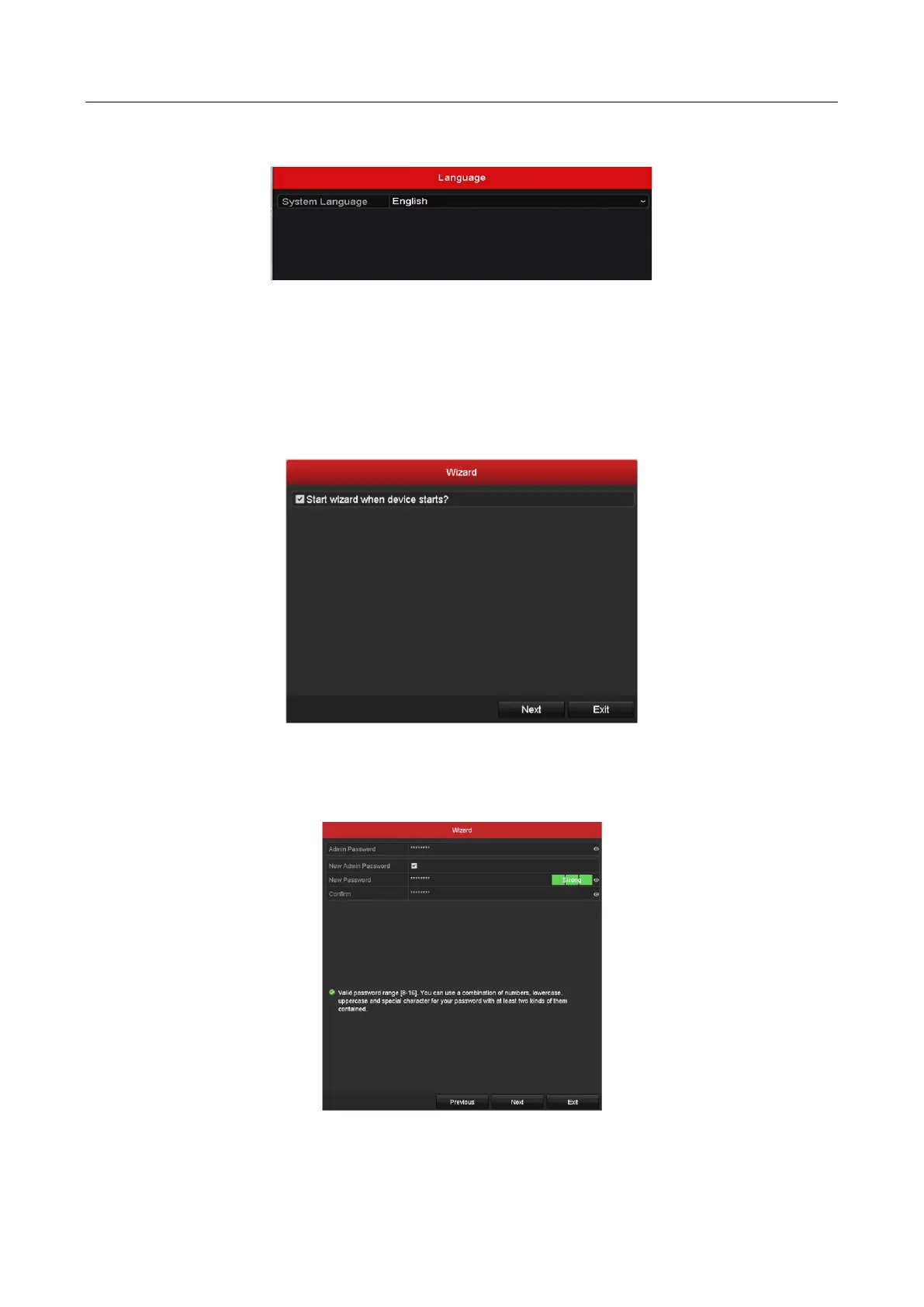

Digital Video Recorder User Manual
60
Step 2 Click Apply button.
Figure 2-16 Language Configuration
Operating the Setup Wizard:
Step 1 The Start Wizard can walk you through some important settings of the device. If you don’t
want to use the Start Wizard at that moment, click Exit. You can also choose to use the
Start Wizard next time by leaving the “Start wizard when device starts?” checkbox
checked.
Figure 2-17 Start Wizard Interface
Step 2 Click Next button to enter the Change the Password interface. Input the Admin Password
or change the password.
Figure 2-18 Change the Password

Table of Contents

Other manuals for HIKVISION DS-7216HGHI-F1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7216HGHI-F1 and is the answer not in the manual?

HIKVISION DS-7216HGHI-F1 Specifications

General IconGeneral
Audio input1
BNC input ports16
Video input channels16 channels
USB 2.0 ports quantity2
DC voltage12 V
Power consumption (typical)20 W
Bit rate64 Kbit/s
InternalNo
Product colorBlack
Video streamingYes
Maximum frame rate30 fps
Audio formats supportedG.711 μ-law
Maximum video resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+
Playback resolutions supported1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users128 user(s)
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interfaceSATA
Maximum HDD capacity6000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth222 mm
Width260 mm
Height45 mm
Weight1200 g
