User Manual of Digital Video Recorder
71

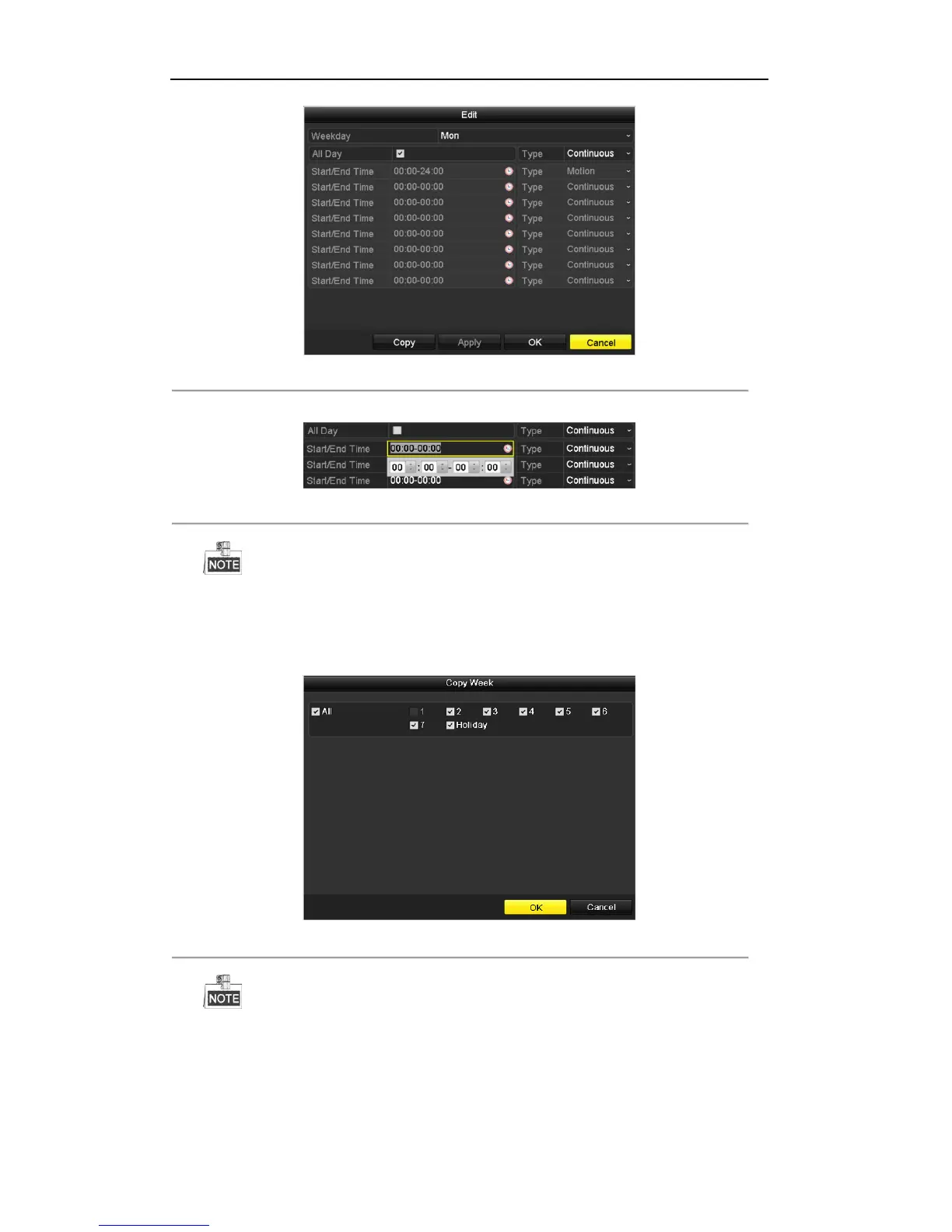

Figure 5. 7 Edit Schedule- All Day
4) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.
Figure 5. 8 Edit Schedule- Set Time Period
Up to 8 periods can be configured for each day. And the time periods cannot be overlapped with
each other.
Repeat the above steps 1)-4) to schedule recording for other days in the week. If the schedule can also be
set to other days, click Copy.
Figure 5. 9 Copy Schedule to Other Days
The Holiday option is available when you enable holiday schedule in Holiday settings. See
Chapter 5.6 Configuring Holiday Record.
5) Click OK to save setting and back to upper level menu.
Draw the schedule
1) Click on the color icon to select a record type in the event list on the right-side of the interface.
