HIKVISION DS-7308HQHI-SH User Manual

User Manual of Digital Video Recorder
158
consumption of the device and extend the life of the HDDs.
Click Menu > HDD > Advanced.

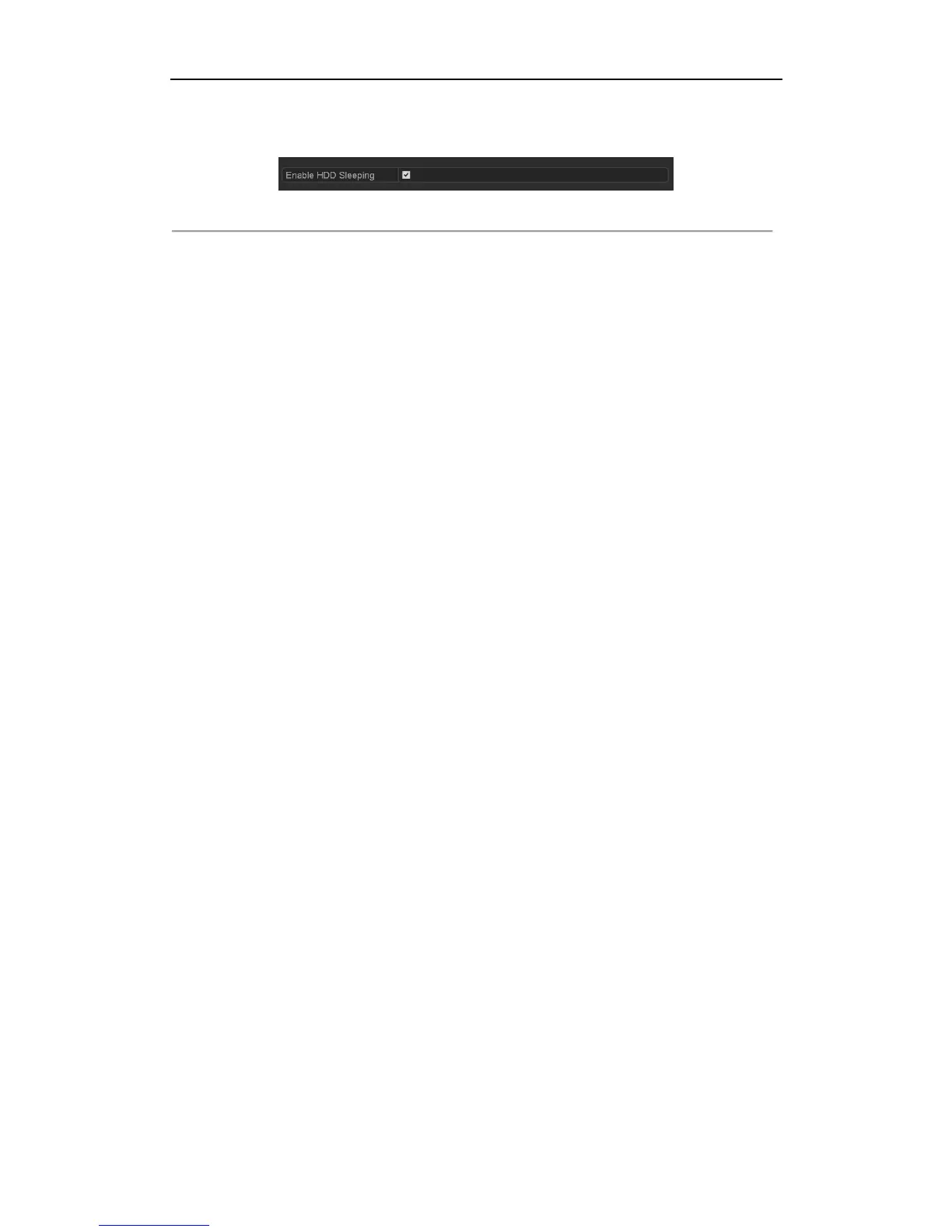

Figure 10. 5 Enable HDD Sleeping
Check the checkbox of Enable HDD Sleeping (by default), and the HDDs which are free of working for a long
time will be set to sleep.
Uncheck the checkbox of Enable HDD Sleeping, and the HDDs will be set to work for all time.

HIKVISION DS-7308HQHI-SH Specifications

General

Product color	Black
USB connectivity	Yes
Channels quantity	8 channels
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, \\r 704 x 576, 704 x 480
Display frame rate	60 fps
Audio input	4
RS-485 ports	1
BNC input ports	8
USB 2.0 ports quantity	3
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	40 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
