HIKVISION DS-7308HQHI-SH User Manual

User Manual of Digital Video Recorder
162
10.4 Managing HDD Group
10.4.1 Setting HDD Groups
Purpose:
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD
group through HDD settings.
Steps:
1. Enter the Storage Mode interface.
Menu > HDD > Advanced
2. Set the Mode to Group, as shown in Figure 10. 13.

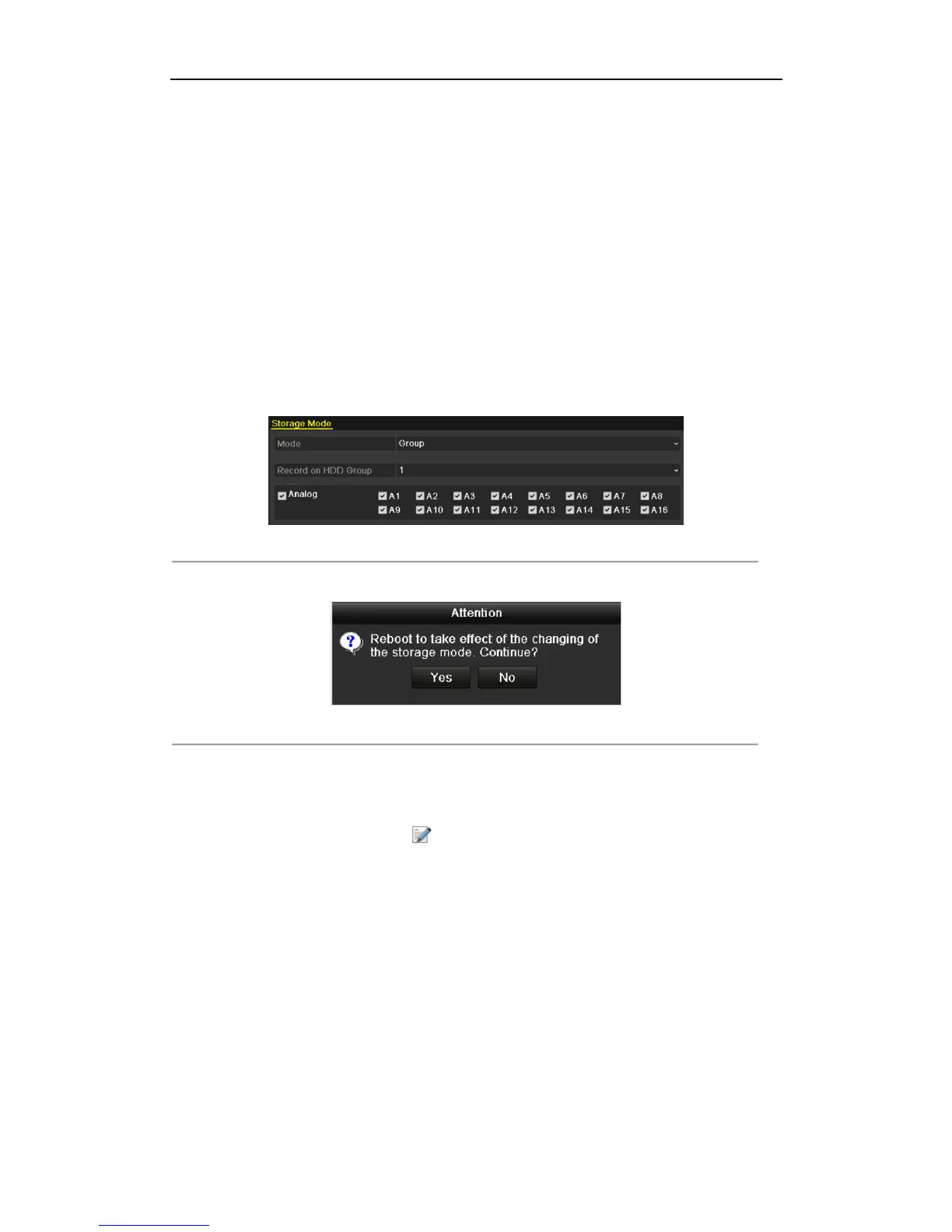

Figure 10. 13 Storage Mode Interface
3. Click the Apply button and the following Attention box will pop up.
Figure 10. 14 Attention for Reboot
4. Click the Yes button to reboot the device to activate the changes.
5. After reboot of device, enter the HDD Information interface.
Menu > HDD > General
6. Select HDD from the list and click the icon to enter the Local HDD Settings interface, as shown in
Figure 10. 15.

HIKVISION DS-7308HQHI-SH Specifications

General

Product color	Black
USB connectivity	Yes
Channels quantity	8 channels
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, \\r 704 x 576, 704 x 480
Display frame rate	60 fps
Audio input	4
RS-485 ports	1
BNC input ports	8
USB 2.0 ports quantity	3
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	40 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
