C H A P T E R 5
Record Settings
Configuring Settings for Recording
There are multiple ways to set up your NVR for recording. They include setting up a recording schedule, triggering a recording by motion
detection, and/or a sensor alarm
Configuring Recording Settings
Before setting your NVR up for recording, certain settings should be configured first.
The first set of settings to configure in this menu is the recording parameters.

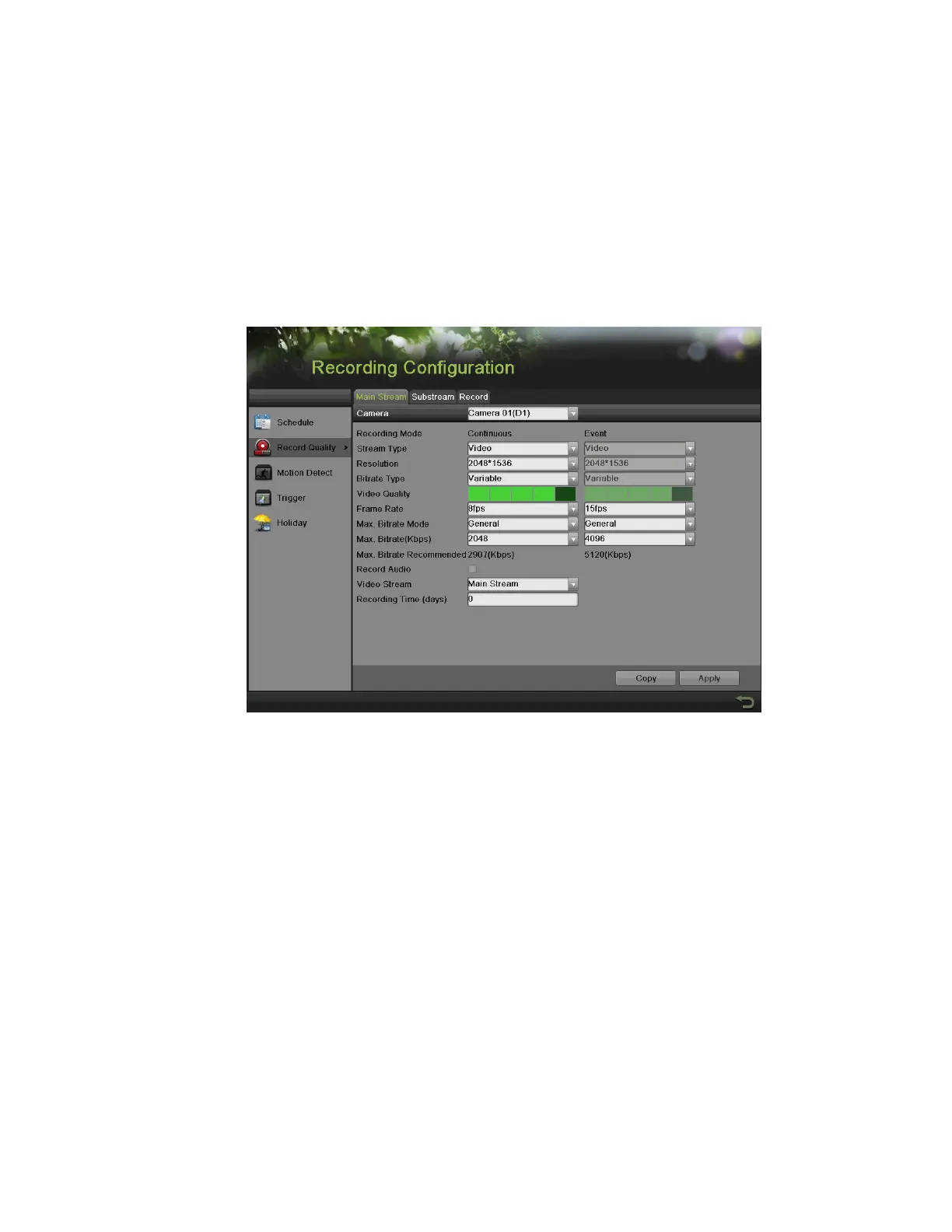

Figure 55, Parameters Settings Menu
1. Enter the Parameters Settings menu by going to Menu > Recording Configuration > Parameters as shown in Figure 55.
2. Select main stream tab to configure the parameters of main stream.
1) Select the camera to configure in the Camera drop-down list.
2) Select the Recording Mode to configure. Both Continuous and Event can be configured.
3) Select the stream type in the Stream Type drop-down list. If the camera supports audio input, options will include Video & Audio
and Video.
4) Select the camera resolution in the Resolution drop-down list. The options for the camera resolution vary by IP camera.
5) Select the bit rate type in the Bitrate Type drop-down list. The options for the camera bit rate type include Variable and Constant.
6) Select the recording Frame Rate to use for the designated camera. A rate of 30 (Full Frame) all the way down to 1/16 of a frame
can be selected.
7) Set the video quality using the Video Quality slider. Increasing the video quality will also increase the maximum bit rate
recommended. The maximum bit rate can be adjusted according to this recommend.
8) Select the maximum bit rate mode in the Max. Bitrate Mode drop-down menu. The options for the camera maximum bit rate
mode include General and Customize (32 – 16,384 kbps).
