HIKVISION DS-7600 Series

DS-7600 Series NVR User Manual
78

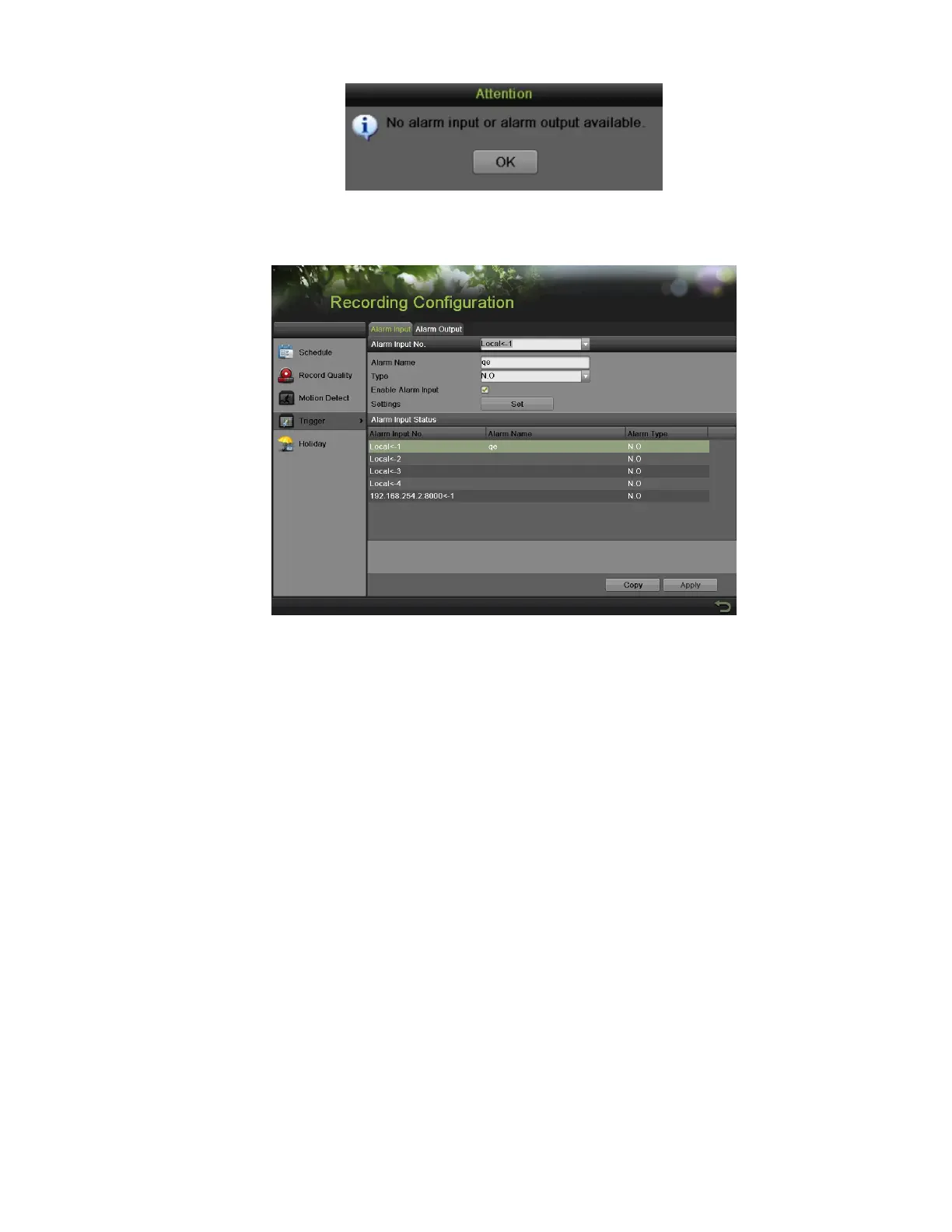

Figure 100, Alarm Attention Message
To set up trigger actions:
Figure 101, Trigger Settings Menu
1. Enter the Trigger menu, shown in Figure 101, Trigger Settings Menu by going to Menu > Recording Configuration > Trigger.
2. Select the Alarm Input tab.
3. Select the Alarm Input No. in the drop-down list.
4. Edit the Alarm Name.
5. Select the trigger Type for the external alarm input device. N.O. means Normally Open. N.C. means Normally Closed. These two
types can be selected.
6. Check the Enable Alarm Input checkbox to enable the selected alarm input. Uncheck the checkbox to disable alarm input.
7. Click the Set button to pop up the Settings menu, as shown in Figure 102, Trigger Channel Settings Menu.
