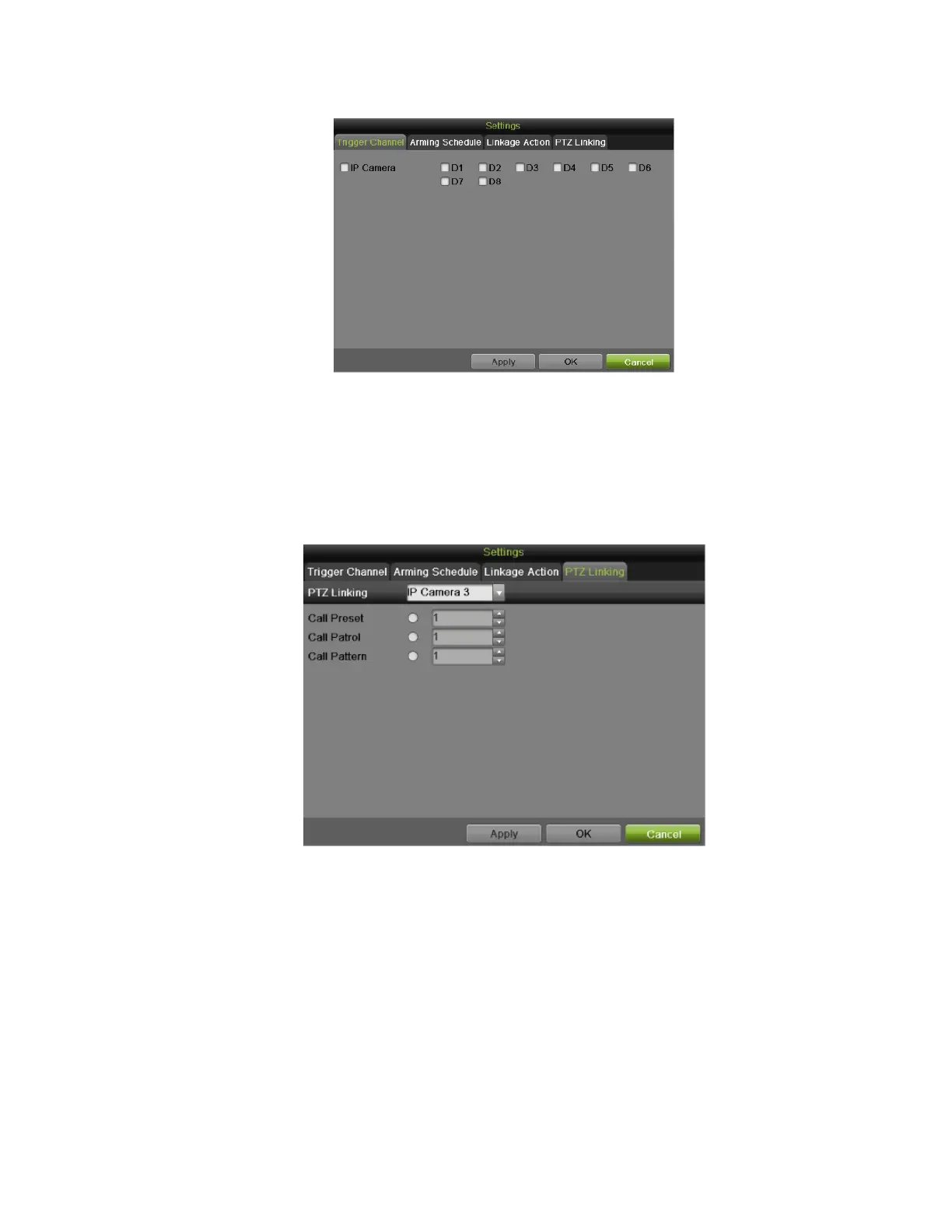

Figure 102, Trigger Channel Settings Menu
1) Select the Trigger Channel tab and check the checkbox of channels which you want the alarm to trigger recording. Click Apply to
save the settings.
2) Select the Arming Schedule tab. Choose one day in a week and set an arming schedule. If the schedule can also be applied to
other days, click Copy. Click Apply to save the settings.
3) Select the Linkage Action tab which is same as Figure 103, PTZ Linking Settings Menu to set other actions. Click Apply to save
the settings.
Figure 103, PTZ Linking Settings Menu
4) Select the PTZ Linking tab, as shown in Figure 75, to set the PTZ actions (only if a PTZ camera is configured on the NVR). Only
one PTZ action can be selected per alarm input. Click Apply to save the settings.
8. If the same settings can be applied to other alarm inputs, click the Copy button to copy the settings to others.
9. Click Apply to save the settings.
10. You can check the alarm input status in the Alarm Input Status list on the Alarm Input Interface.
Configuring Alarm Outputs
If the camera supports alarm output, there will trigger an alarm output when an alarm is triggered. To configure alarm output:
