Network Video Recorder User Manual
49
Menu> Camera> Camera

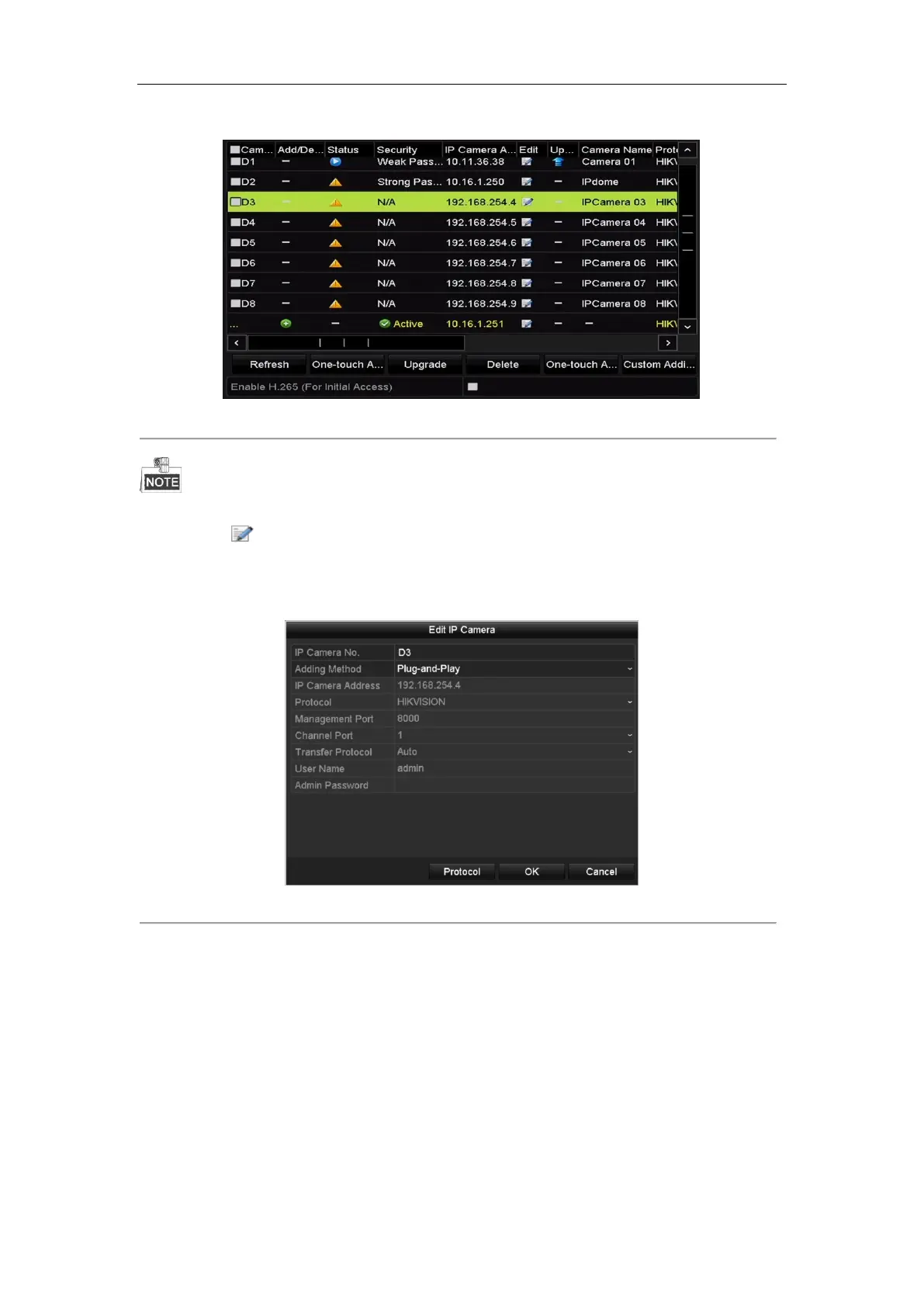

Figure 2. 37 List of Connected Cameras
The cameras connecting to the PoE interface cannot be deleted in this menu.
2. Click the button, and select the Adding Method in the drop-down list.
• Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case, the
parameters of the camera can’t be edited. The IP address of the camera can only be edited in the Network
Configuration interface, see Chapter 11.1 Configuring General Settings for detailed information.
Figure 2. 38 Edit IP Camera Interface - Plug-and-Play
• Manual: You can disable the PoE interface by selecting the manual while the current channel can be
used as a normal channel and the parameters can also be edited.
Input the IP address, the user name and password of administrator manually, and click OK to add the IP
camera.

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
