Network Video Recorder User Manual
183
12.3 Managing HDD Group
12.3.1 Setting HDD Groups
Purpose:
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD
group through HDD settings.
Steps:
1. Enter the Storage Mode interface.
Menu > HDD > Advanced
2. Set the Mode to Group, as shown in Figure 12. 11.

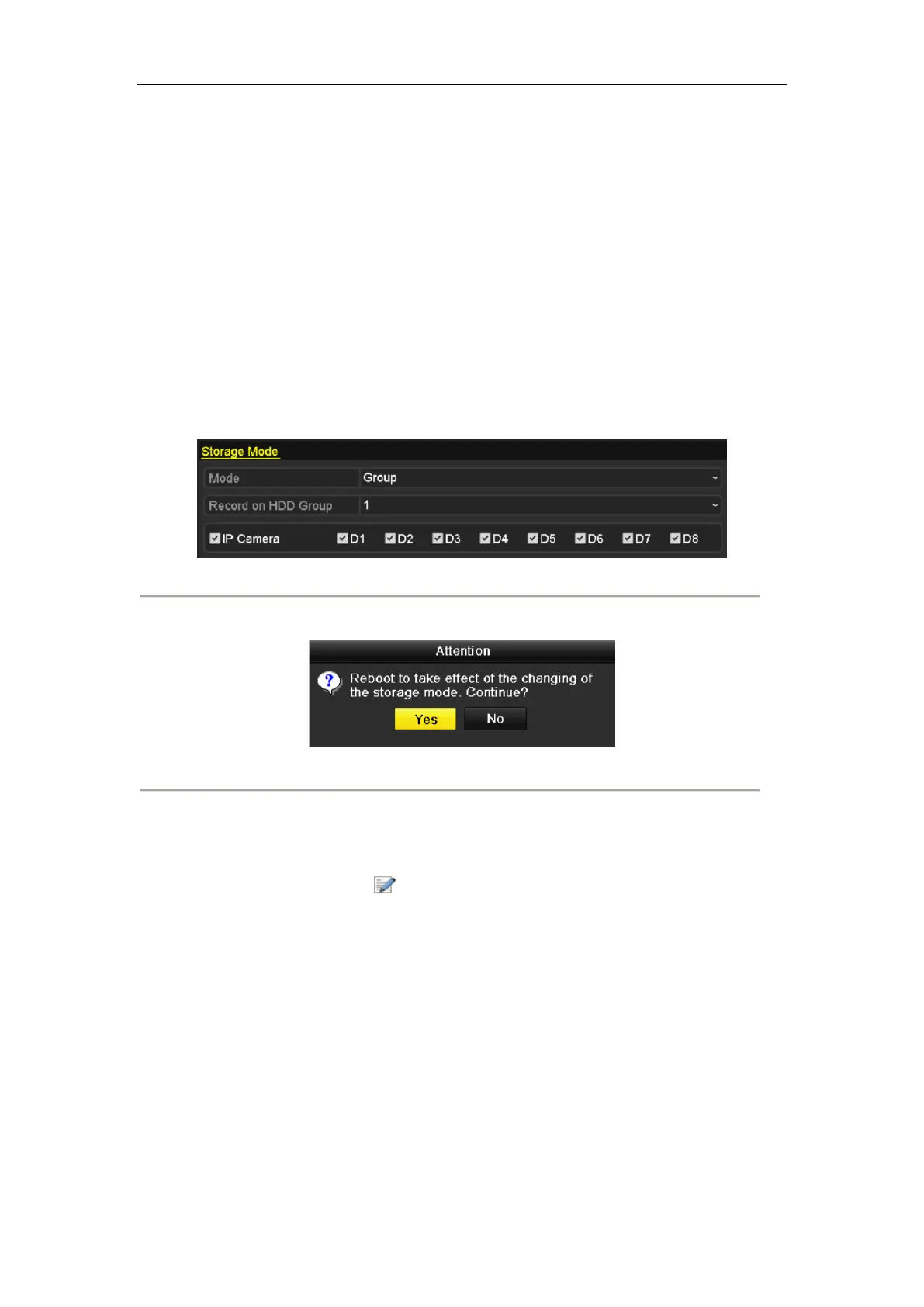

Figure 12. 11 Storage Mode Interface
3. Click the Apply button and the following Attention box will pop up.
Figure 12. 12 Attention for Reboot
4. Click the Yes button to reboot the device to activate the changes.
5. After reboot of device, enter the HDD Information interface.
Menu > HDD> General
6. Select HDD from the list and click icon to enter the Local HDD Settings interface, as shown in Figure
12. 13.
