HIKVISION DS-9664NI-I8 Quick Start Guide

Network Video Recorder Quick Start Guide
20

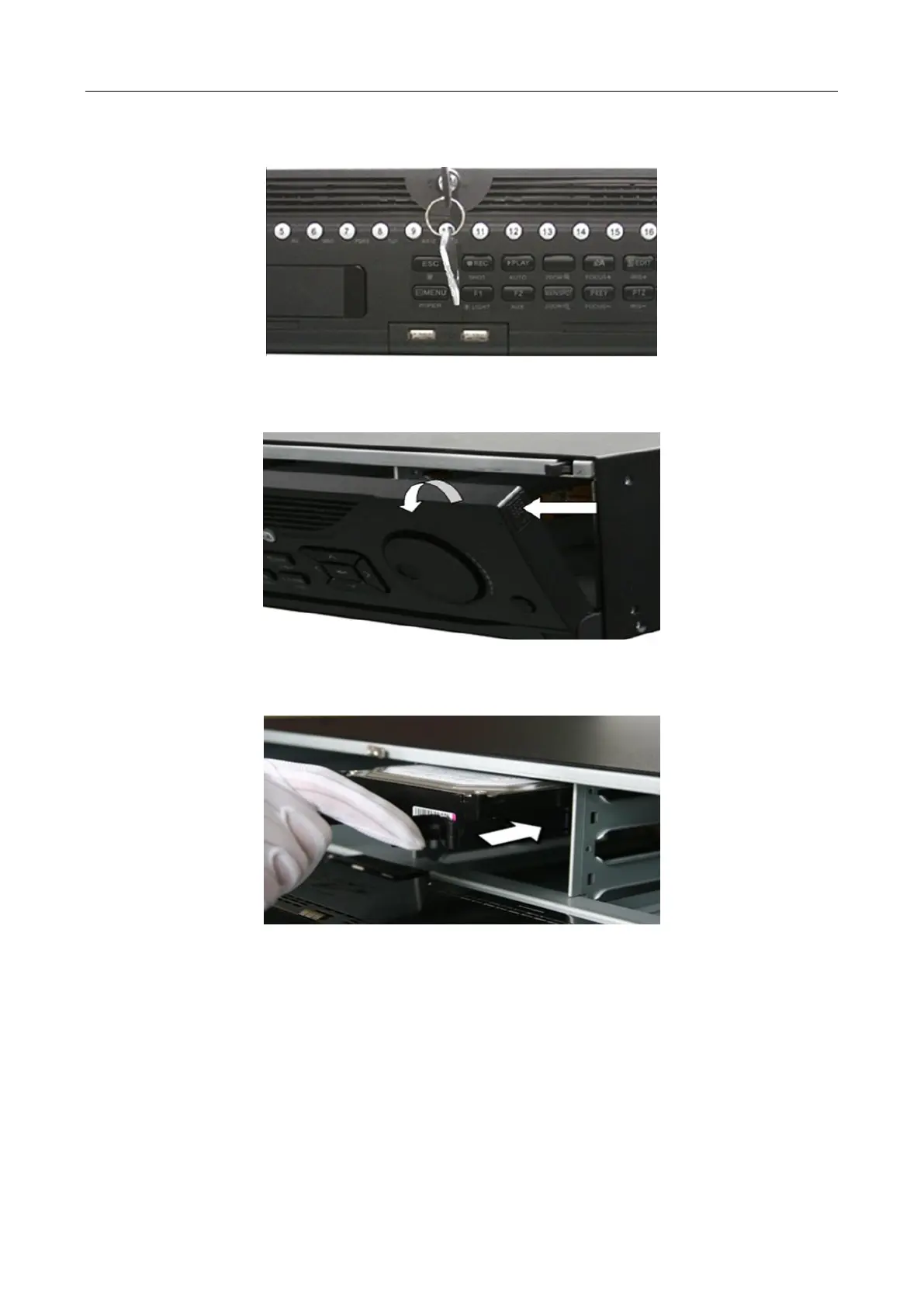

Step 2 Insert the key and turn in clockwise direction to open the panel lock.
Figure 2-2 Insert Panel Key
Step 3 Press the buttons on the panel of two sides and open the front panel.
Figure 2-3 Open Panel Lock
Step 4 Insert the hard disk along the slot until it is placed into position.
Figure 2-4 Insert Hard Disk
Step 5 Repeat the above steps to install other hard disks onto the NVR. After having finished the
installation of all hard disks, close the front panel and lock it with the key again.

HIKVISION DS-9664NI-I8 Specifications

General

Product color	Black
Rack capacity	2U
Rack mounting	Yes
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Display modes	Live view
Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	64 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.265, MPEG4
Still image resolution(s)	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	48 TB
Number of HDDs installed	0
Number of HDDs supported	8
Wi-Fi	No

Weight and Dimensions

Depth	445 mm
Width	470 mm
Height	90 mm
Weight	10000 g
