HIKVISION DS-K1T320MFWX User Manual

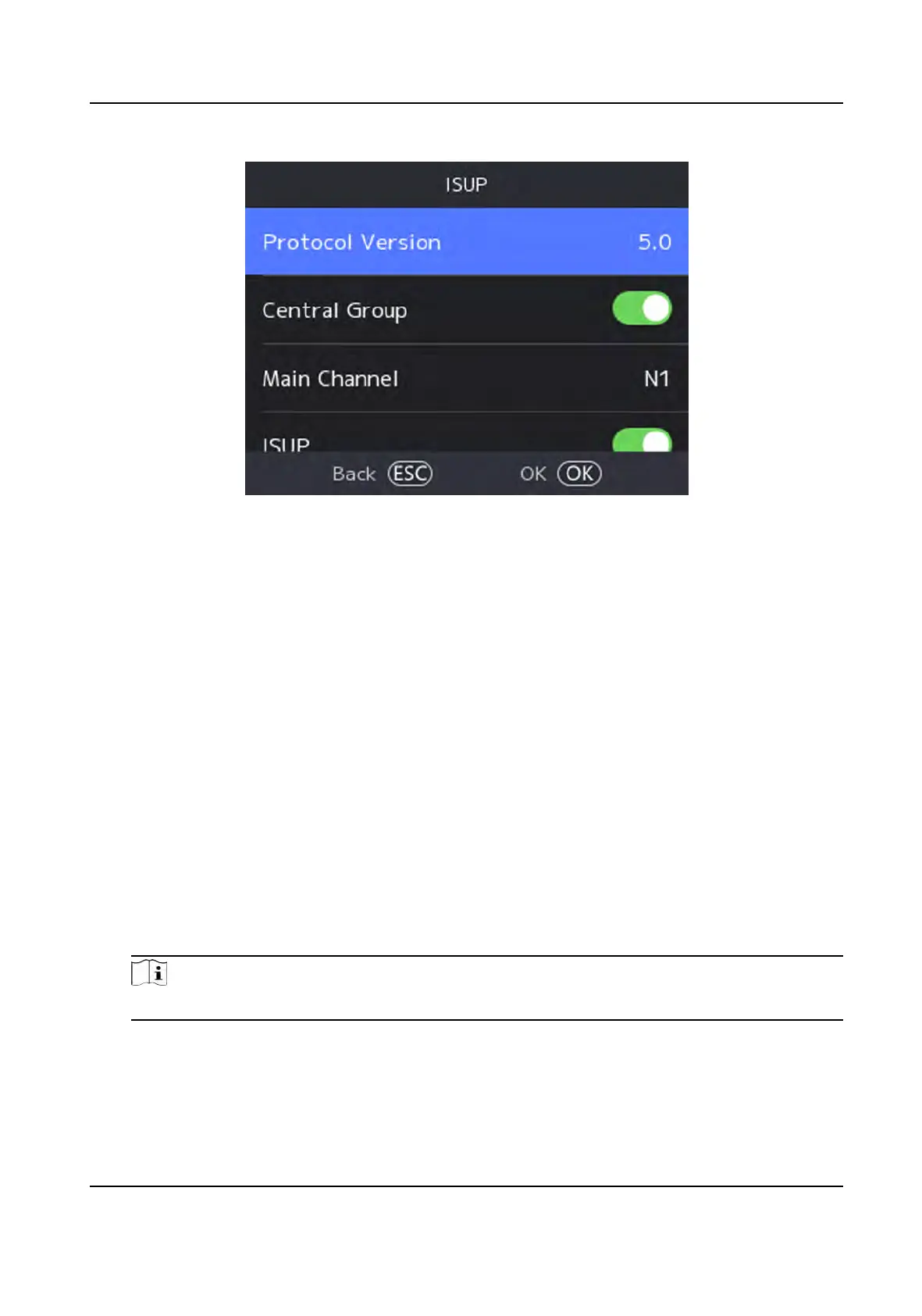

Figure 7-4 ISUP
Sengs
2.
Enable the ISUP funcon and set the ISUP server parameters.
ISUP Version
Set the ISUP version according to your actual needs.
Central Group
Enable central group and the data will be uploaded to the center group.
Main Channel
Support N1 or None.
ISUP
Enable ISUP funcon and the data will be uploaded via ISUP protocol.
Addr
ess Type
Select an address type according to your actual needs.
IP
Set the ISUP server's IP address.
Port
Set the ISUP server's port No.
Note
Port No. Range: 1 to 65535.
Device ID
Se
t device serial no.
ISUP Key
DS-K1T320 Series Face Recoginon Terminal User Manual
28

HIKVISION DS-K1T320MFWX Specifications

General

Operating system installed	Linux
Display diagonal	2.4 \
Display resolution	320 x 240 pixels
Display technology	LCD
Camera resolution (numeric)	2 MP
USB port	Yes
Ethernet LAN (RJ-45) ports	1
Face capacity	500
Housing color	Black
Cards capacity	1000 cards
Event capacity	100000
Languages support	Multi
Authentication modes	Multiple
Face recognition accuracy	99 %
Face recognition distance	0.3 - 1.5 m
Face recognition duration	0.2 s
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 90 %
Power consumption (typical)	6 W
Type	Face recognition terminal
