DS-K2600 Series Access Controller
31

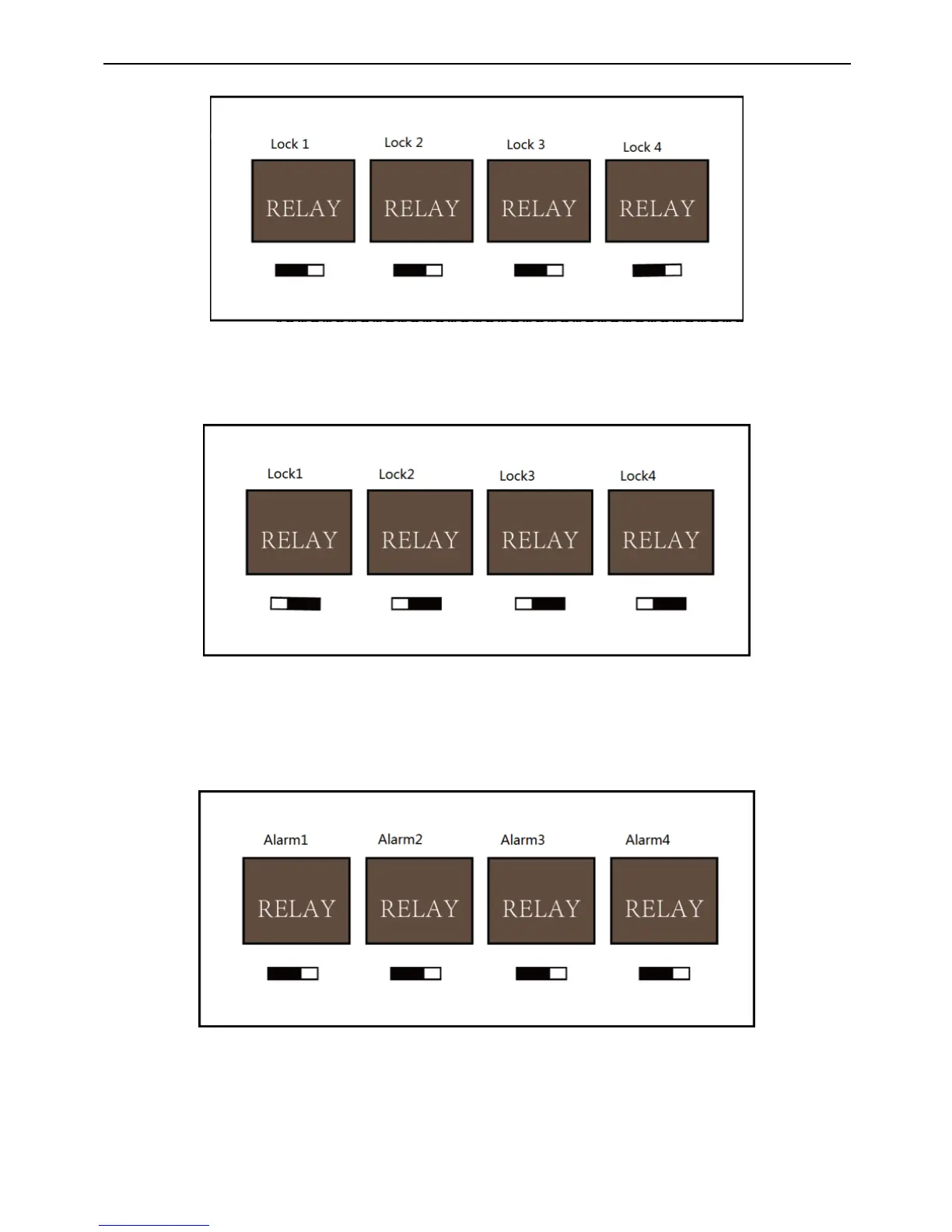

Figure 5-2 Normally Open Status
Lock Relay Normally Closed Status
Figure 5-3 Normally Closed Status
5.2.2 Alarm Relay Output Status
Alarm Relay Output Normally Open
Figure 5-4 Alarm Relay Output Normally Open
Alarm Relay Output Normally Closed
